Description

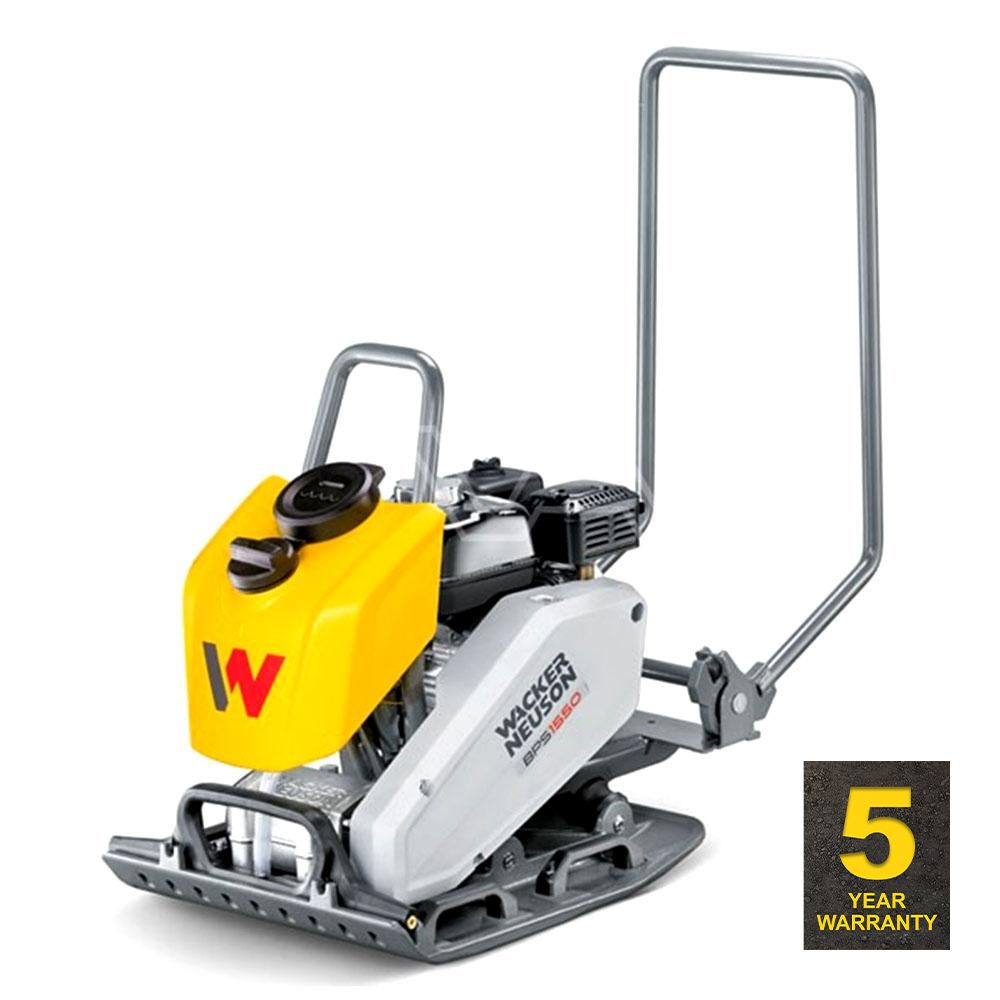

The BPS series is distinguished by its outstanding handling capabilities. Moving and turning these vibratory plates on fresh asphalt is unsurpassed in comfort and produces clean finishes with no marks. Even clean finishes at curbs are easy to produce due to the angular side edges of the base plate. The guide handle responds precisely to steering movements while still achieving low hand-arm vibrations of less than 5 m/s², which makes long and comfortable working conditions possible.
Features:
- Excellent driving features no matter whether used on asphalt or soil – the BPS is easy to manoeuvre and provides perfect surfaces
- Clean finish to the kerb is easily generated due to the square side-profile of the base plate
- The control handle addresses the steering movements clearly, yet nevertheless generates low hand-arm vibrations of less than 5m/s², which enable a long, comfortable working conditions
- Easy to transport: A large lifting eye and wide, ergonomically designed carrying handles make moving and loading the machine both easy and comfortable
- Maintenance-free – the BPS series is equipped with an extremely sturdy fan belt. As a result, it is practically maintenance-free
Specifications:
- Power: 4.8HP (3.6kW)
- Max speed: 3600min/1
- Engine: Honda 4-Stroke, air cooling, recoil starter
- Max inclined position: 20°
- Tank capacity: 3.6L
- Vibrations: 5880min/1
- Forward running: 25m/min
- Gradeability: 36.4%
- Centrifugal force: 15kN
- Area capacity: 750m²/h
- Ground clearance: 663mm
- Baseplate Dimensions (L x W): 500mm x 599mm
- Weight: 89kg
