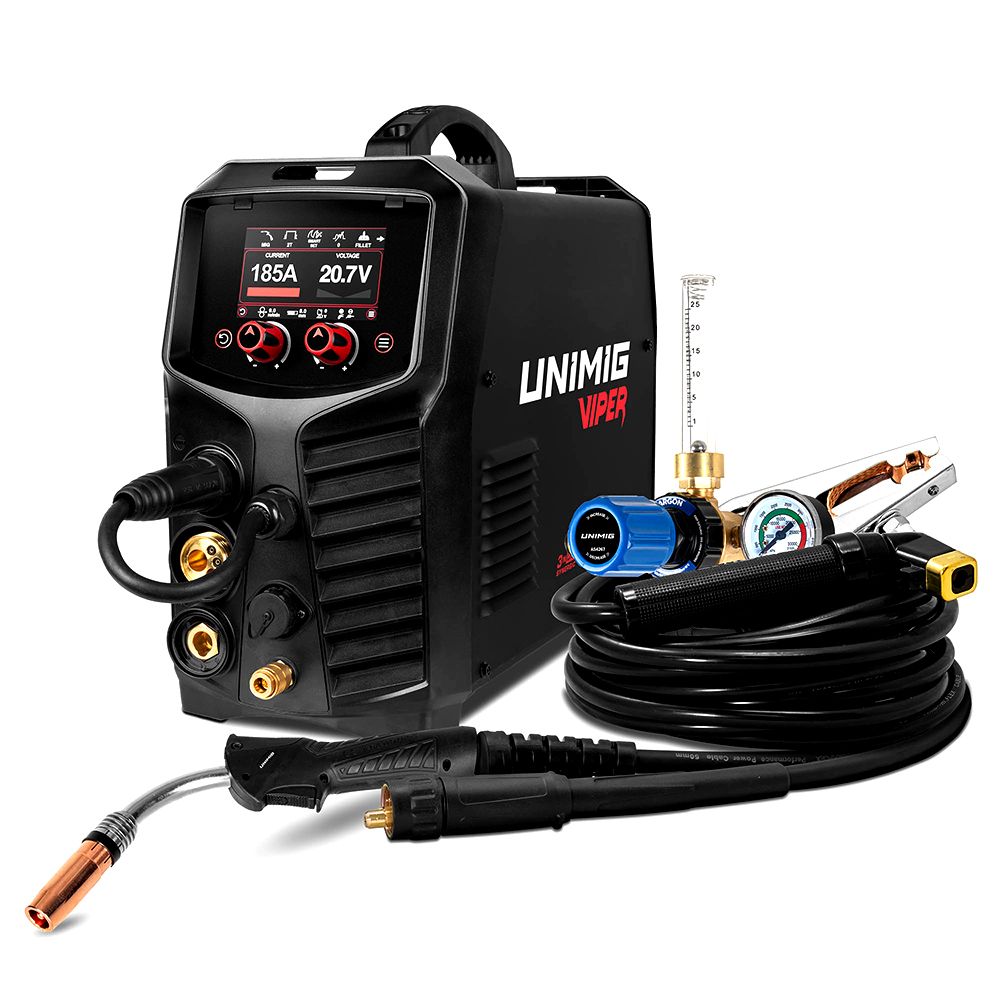

UNIMIG U11260 VIPER MULTI 185 Multi Process Pulse MIG/TIG/STICK 10A Welder

Description

Unrivalled on a 10 amp plug, the VIPER MULTI 185 is the perfect multi-process machine for all those home repairs and hobby projects you’ve got planned.

Includes:

• 1 x 3m M26 MIG Torch
• 1 x 4m Twist Lock Electrode Holder
• 1 x 4m 200 Amp Earth Clamp & Lead
• 1 x Dual Stage Flowmeter
• 1 x 2m Gas Hose Complete with Fittings
• 1 x 9-to-9 Pin TIG Torch Adapter
• 1 x Operating Manual
• 1 x 0.8-0.9mm V Groove Roller
• 1 x 0.8-0.9mm F Groove Roller
• 1 x 1.0-1.2mm U Groove Roller

Features:

• MIG, TIG, and Stick welding in one machine
• Pulse MIG for cleaner, low-spatter welds
• Synergic MIG for easy automatic settings
• Geared wire drive for consistent feed
• High-frequency start for clean TIG arcs
• Save up to 10 custom weld settings
• Smart fan runs only when needed
• Power Factor Correction for efficient power use
• Runs on standard 10A power outlet
• Generator compatible (≥ 10 kVA recommended)
• Ready for spool gun use (aluminium MIG)
• Adjustable arc length and burnback
• Wire inching and trim functions
• Thermal overload protection included
• Compact and portable (13.5 kg)

Specifications:

• Primary Input Voltage: 240V Single-Phase
• Supply Plug: 10 AMP
• Open Circuit Voltage: 67 OCV (V)
• Protection Class: IP21S
• Insulation Class: H
• Minimum Generator: 9 kVA
• Standard: AS 60974.6
• MIG Duty Cycle @ 40°C:
  • 10% @ 185A
  • 60% @ 77A
  • 100% @ 60A
• TIG Duty Cycle @ 40°C:
  • 10% @ 185A
  • 60% @ 77A
  • 100% @ 60A
• MMA Cycle @ 40°C:
  • 10% @ 180A
  • 60% @ 75A
  • 100% @ 60A
• Driver Rollers 30/22
• Dimensions (L x W x H) 553mm x 214mm x 388mm
• Weight: 13.5kg

Warranty:

• 3 Year Warranty Covered by UNIMIG
