Description

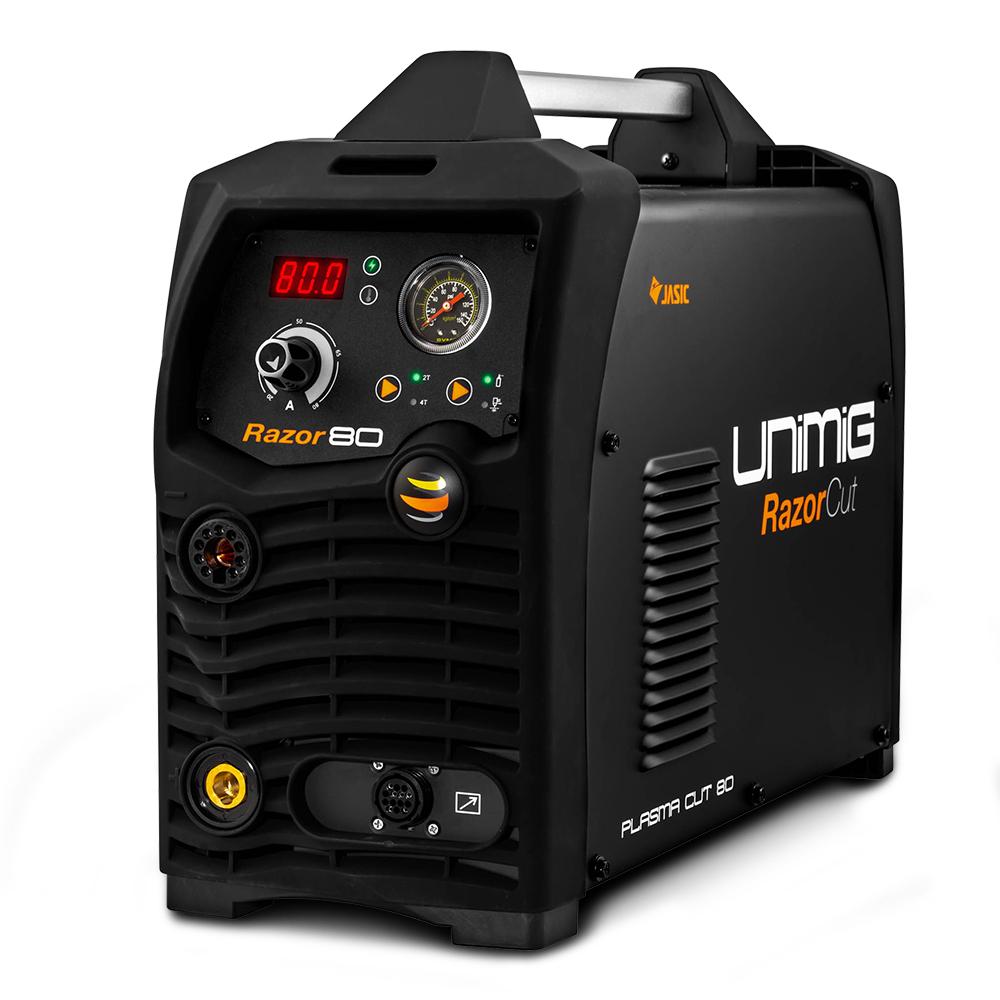

The RAZOR™ CUT 80 is designed for maximum performance, offering the highest level of cutting performance from UNIMIG’s range. Capable of clean cutting 30mm and severing 35mm, this machine is for the professional needing maximum power from a portable machine.
Includes:
- 1 x 6m SC80 Plasma Torch
- 1 x 4m 300 AMP Earth Clamp
- 1 x Air Regulator
- 1 x Operating Manual
Features:
- Three phase 415V Power
- 30mm Clean Cut
- Pilot Arc Start – Start Cut without direct contact
- Latest IGBT Inverter Technology
- CNC Connection
- Safe Euro torch connection
- High quality SC80 6 Metre Plasma torch
- Industrial application
- Tolerant to variable power supply
- In-built Air Regulator with preset air pressur
- Suitable to cut all electrically conductive materials
- Light weight and compact
- Strong metal housing, with plastic front and rear covers
- Generator use with pure sine wave generator only
Specifications:
- Primary Input Voltage: 415V Three Phase
- Duty Cycle @ 104°F: 40% @ 80Amps
- Rated Input Power: 15kVA
- No Load Voltage: 340V
- imax (A): 20A
- ieff (A): 12.6A
- Output Current Range Plasma: 20-80A
- Rated Output Voltage: 340V
- Insulation Class: F
- Protection Class: IP21S
- Dinse Connector: 35/50
- Plasma Arc Starting: Pilot L/F
- Air Flow Pressure (MPA): 0.5 (75 psi)
- Air Flow Rate l/min: 189
- Cutting Thickness – Clean: 30mm
- Cutting Thickness – Severance: 35mm
- Certification Approval: AS/NZS 60974-1
- Dimensions (L x W x H): 560mm x 220mm x 415mm
- Weight: 16kg
Warranty:
- 3 Years Warranty Covered By UNIMIG (Machine Only)
