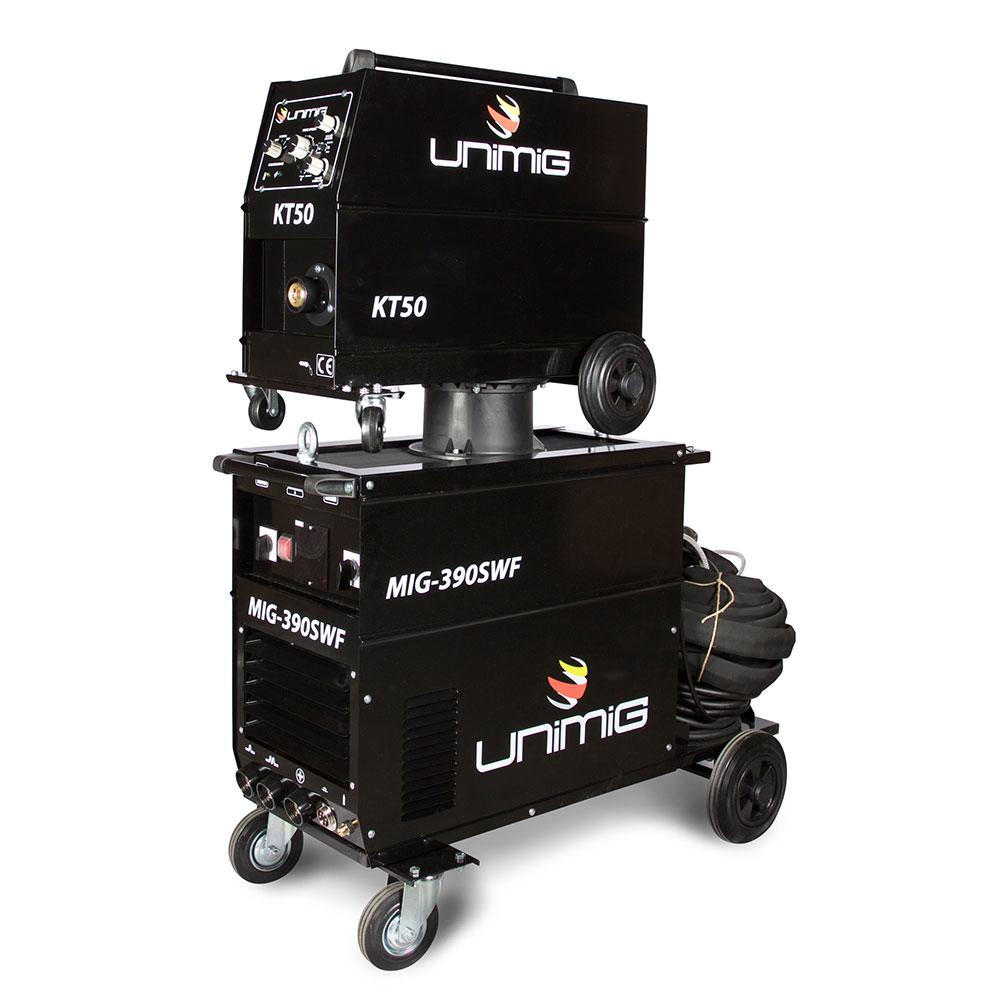

UNIMIG KUM390S/D (390 SWF Dual) 375 Amps Dual voltage Mig Welder – Workshop Series

Description

TheUnimig 390 is a powerful workhorse with an exceptionally high dutycycle. It is ideally suited for medium to heavy fabrication industriesas well as rural applications. Combining smooth arc characteristicswith complete reliability, the Unimig 390 is the unit to satisfy allthe demands of the professional welder. Fitted standard with a gearedfour roller drive system ensuring consistent wire feed and smoothwelding.

Technical Data:Part NumberKUM390SDPrimary input Voltage 415V 3 PhaseWelding Current
40 – 375 AmpsVoltage steps
30
DUTY CYCLE 40?C70% @ 355 Amps
100% @ 135 Amps
NOTE: UNI-MIG390S/D
Duty cycle is reduced
when connected to 480VOLT 1 Phase
Welding Voltage Range DC
16V – 32.5VWire Size(mm )0.6 – 1.6mm Ferrous 0.9 – 1.6mm Stainless Steel0.6 – 1.6mm Aluminium0.8 – 2.4mm Flux coredDimensions (mm )
1270 x 920 x 460mm
weight
168 kgs
Torch Options:

• SB36 4 Metre / 5 Metre
• ARB 400 / 12ft / 15ft & 17ft
• TWC 4 / 12ft / 15ft & 17ft

390Compact Comes With:

• Argon regulator,
• Gas Hose,
• 10 Metre Earth lead,
• SB36 3 Metre MIG torch (Optional 4 Metre)
