Description

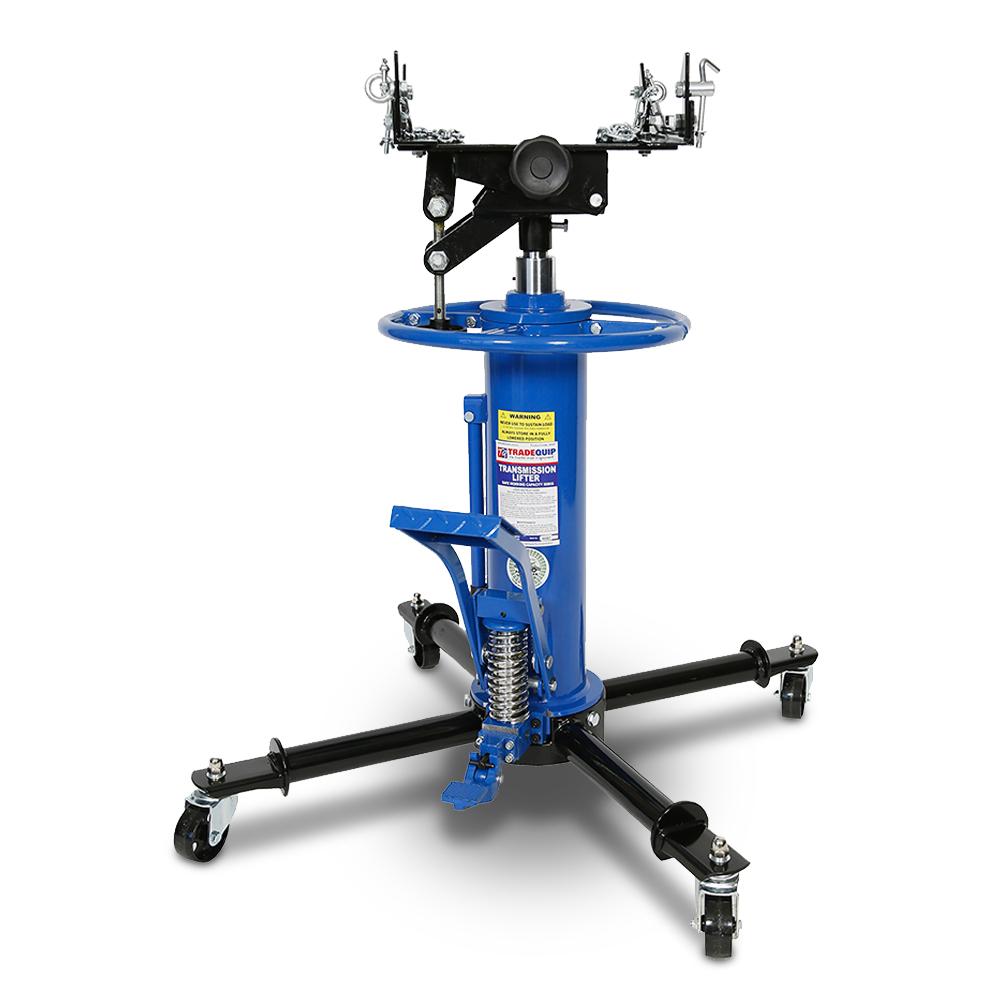

This TradeQuip “Made for the Trade” 500kg Transmission Lifter is designed for passenger Car transmissions. Features a universal mounting cradle that provides a 2 way tilt range and a manually operated hydraulic system with smooth hydraulic lift and descent. The hydraulic system also includes a bypass system to prevent over extension and accidental overloading. The sturdy and stable design offers safety and security when removing and installing large and heavy transmissions.
Features:
- Designed Designed for passenger car transmissions
- Base frame constructed of high-grade steel
- 2-Stage hydraulic lift
- High quality large diameter hydraulic cylinder
- Universal 2 way tilt cradle with safety chains
- Lead-free paint finish for a long-lasting finish
- Paint finish is oil, grease and dirt-resistant for easy cleanup
- Heavy-duty steel swivel castors
Specifications:
- Safe Working Capacity: RWD/FWD/AWD GVM <2,300KG
- Rated Capacity: 500kg
- Working Height: 895mm – 1875mm
- Lifting Platform Size: 340mm x 240mm
- Lifting Platform Bracket Ranges ID: 420mm x 250mm to 420mm x 435mm
- Tilt Angle: Left 7°
- Tilt Angle: Right 15°
- Weight: 73kg
