Description

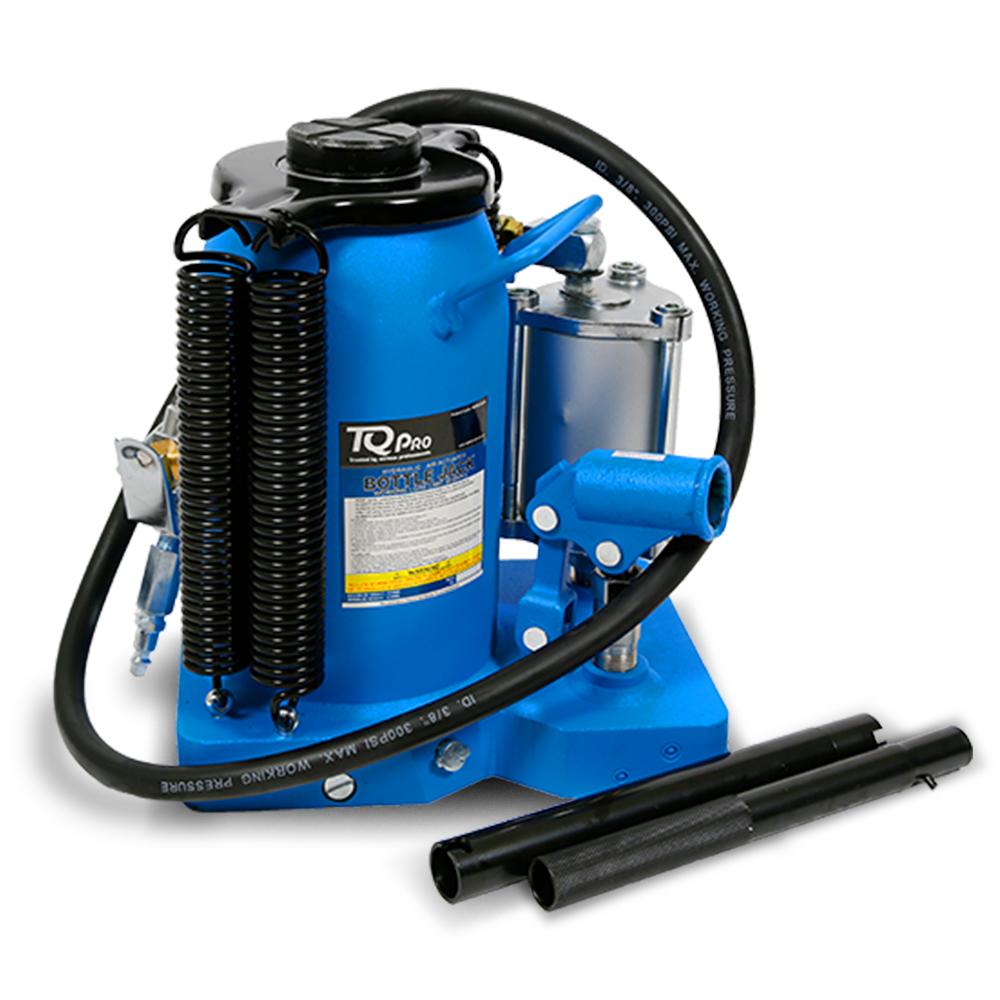

The 30,000kg Air/Hydraulic Bottle Jack is constructed of superior grade steel and built to premium standards for quality and durability. The premium-quality, large diameter hydraulic steel cylinder unit results in lower oil pressure needed to raise the load. A built-in bypass device protects the hydraulic system from over-pumping damage. The sturdy and stable design features a welded base and cylinder to assure strength and eliminate leaks.
Features:
- Frame is constructed using superior-grade steel
- Premium quality large diameter hydraulic steel cylinder with precision tolerances
- Piston-ram is treated and polished to minimise wear and extend service life
- High capability premium quality seal system efficiently protects internal hydraulics keeping it free from contaminants
- Lead-free paint finish is applied after a thorough chemical wash to ensure a long-lasting premium finish
- Paint is oil, grease and dirt-resistant for easy cleanup
- Thick Base Design: Provides the firmest footprint reducing flex. This substantially increases the life of the hydraulic ram under the toughest lifting and lowering circumstances.
- Welded Reservoir: A welded reservoir instead of the screw base results in a substantial increase in durability.
- The completely sealed hydraulic system, wear and tear and internal contamination is dramatically reduced.
Specifications:
- Safe Working Capacity: 30,000kg
- Maximum Height: 521mm
- Minimum Height: 276mm
- Hydraulic Lift: 150mm
- Operating Air Pressure: 110-125psi
- Air Inlet Fitting: 1/4″
- Base Dimensions: 250mm x 180mm x 40mm
- Carton: 270mm x 240mm x 290mm
- Net Weight: 29kg
