Description

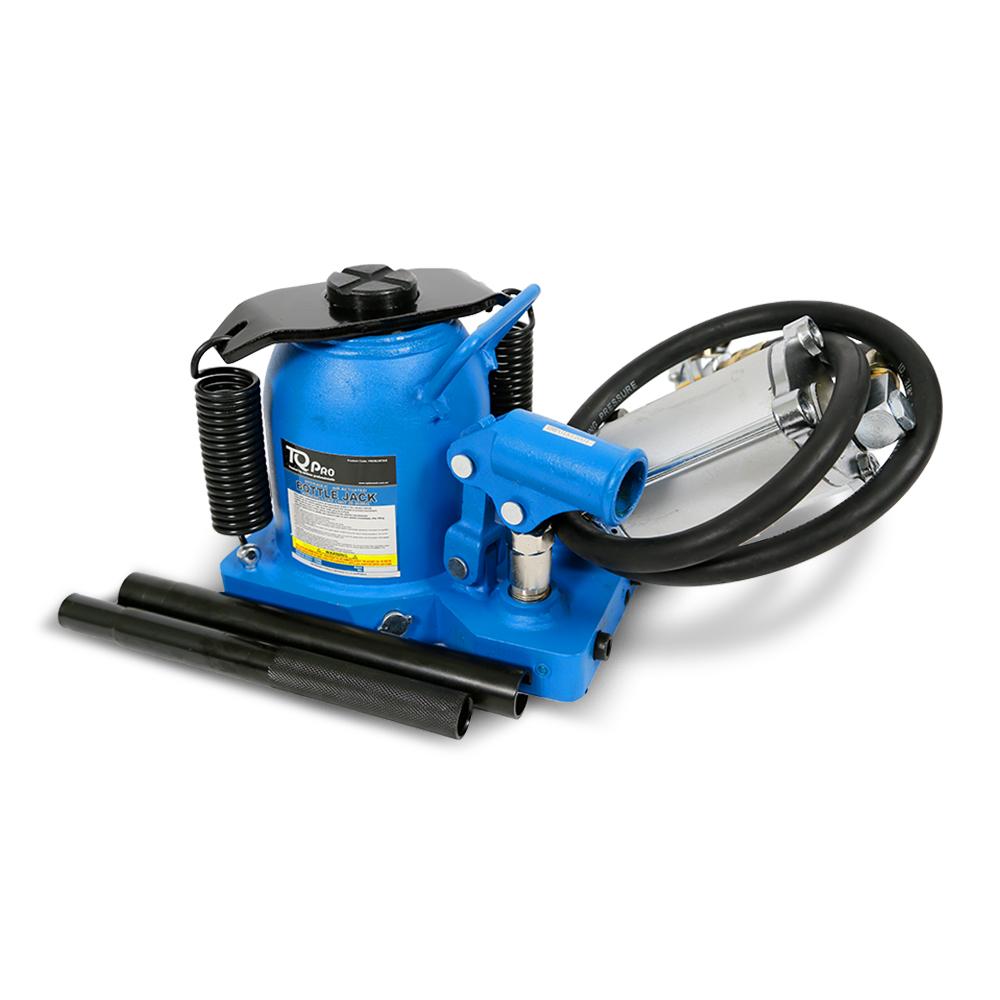

The Pro 20,000kg Air/Hydraulic Bottle Jack is constructed of superior grade steel and built to premium standards for quality and durability. The premium-quality, large diameter hydraulic steel cylinder unit results in lower oil pressure needed to raise the load. A built-in bypass device protects the hydraulic system from over-pumping damage. The sturdy and stable design features a welded base and cylinder to assure strength and eliminate leaks.
Features:
- Using CNC technology, the frame is constructed using superior-grade steel and built to premium TQ Pro standards for professional quality and durability
- Premium quality large diameter hydraulic steel cylinder with precision tolerances
- Piston-ram is treated and polished to minimise wear and extend service life
- High capability premium quality seal system efficiently protects internal hydraulics keeping it free from contaminants
- Lead-free paint finish is applied after a thorough chemical wash to ensure a long-lasting premium finish
- Paint is oil, grease and dirt-resistant for easy cleanup
- Thick Base Design : The thick base design is to provide the firmest footprint reducing flex. This substantially increases the life of the hydraulic ram under the toughest lifting and lowering circumstances.
- Welded Reservoir: A welded reservoir instead of the screw base results in a substantial increase in durability. With the completely sealed hydraulic system, wear and tear and internal contamination is dramatically reduced.
Specifications:
- Safe Working Capacity: 20,000kg
- Maximum Height: 324mm
- Minimum Height: 178mm
- Hydraulic Lift: 85mm
- Adjustable Height: 61mm
- Operating Air Pressure: 110-125psi
- Air Inlet Fitting: 1/4″
- Base Dimensions: 000 x 000mm
- Carton: 380mm x 195mm x 200mm
- Net Weight: 16kg
