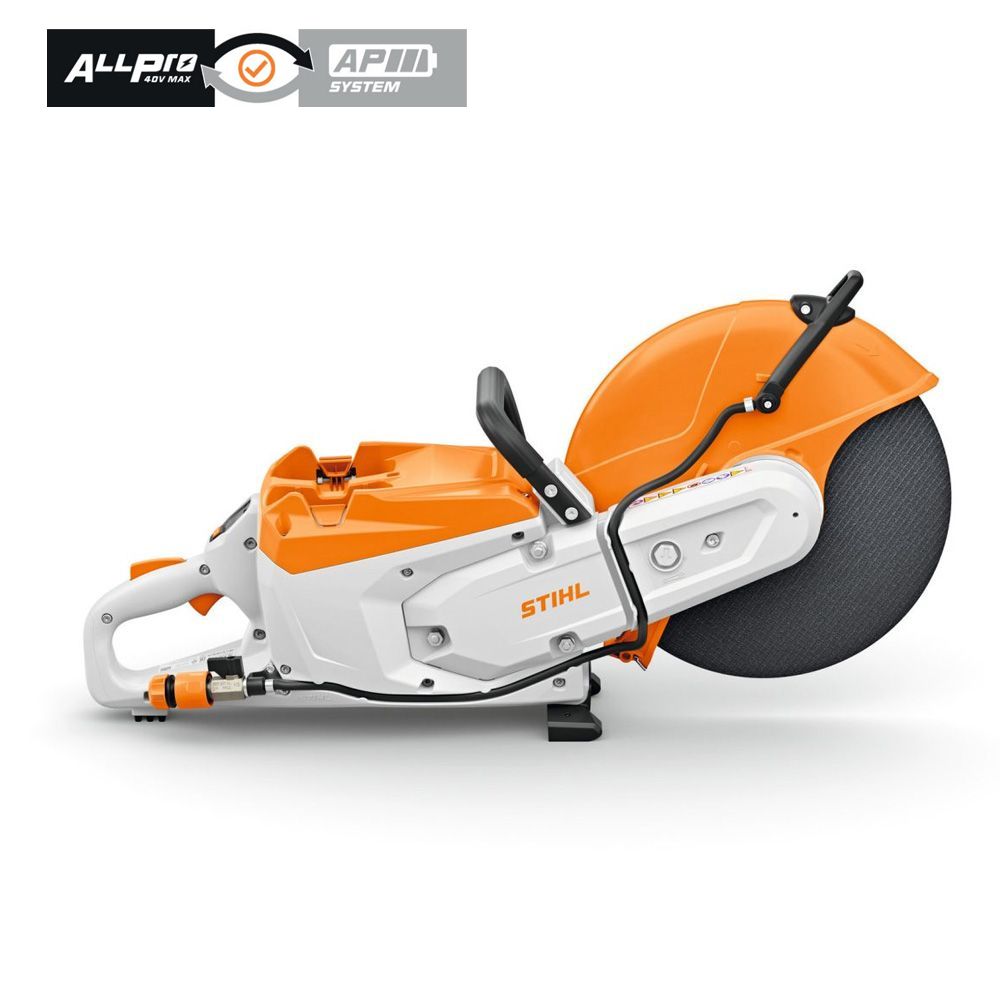

STIHL TSA500 (TA010116603) 72V Li-ion Cordless 350mm (14″) Cut-Off Machine – Skin Only

Description

The STIHL TSA 500 B is a powerful professional cordless cut-off machine engineered for demanding construction, landscaping, civil works and emergency-service applications. Delivering consistent high-performance cutting without exhaust emissions, it is suitable for cutting steel, concrete, brick and natural stone—including work in enclosed or poorly ventilated areas.

Powered by two STIHL AP batteries, the TSA 500 B combines a high-output brushless EC motor with precise handling, low vibration and an integrated water connection for effective dust suppression. Its HMI ADVANCE PLUS control module provides convenient access to operating information, while the integrated STIHL Smart Connector enables digital equipment management through STIHL Connected.

Features:

• Powerful professional cordless cut-off machine for steel, concrete, brick and natural stone
• High-output 4.2kW brushless EC motor provides efficient, low-maintenance performance
• Constant Power electronics maintain consistent cutting performance as the batteries discharge
• Operates using two STIHL AP batteries for high power and extended runtime
• Accepts 350mm cutting wheels for cuts up to 125mm deep
• HMI ADVANCE PLUS digital control module with integrated LED display
• Integrated STIHL Smart Connector supports connected equipment management
• Magnetic Filter helps protect the motor from fine metallic dust and particles
• Coasting brake rapidly slows the cutting wheel after the trigger is released
• Recuperation function converts braking energy and feeds it back into the batteries
• Adjustable magnesium wheel guard with an integrated water channel
• Standard water connection assists with dust suppression during wet cutting
• Ergonomic handle design and rigid construction support accurate, controlled cutting
• Low-vibration operation helps improve comfort during extended use
• Exhaust-emission-free operation makes it suitable for indoor and outdoor applications
• IPX4-rated splash resistance for professional use in adverse weather conditions
• Compatible with the STIHL AP battery system

Specifications:

• Rated Voltage 72V
• Maximum Voltage 80V
• Power Consumption 5kW
• Power Output 4.20kW
• Cordless Power System ALLPRO/AP
• Recommended Battery AP 300.0 P
• Battery Discharge Simultaneous
• Cutting Disc Diameter 350mm
• Maximum Cutting Depth 125mm
• Battery Working Time:
  • Runtime With AP 200 S:
    • Min: 8 Minutes
    • Maximum: 16 Minutes
  • Runtime With AP 200.0 P:
    • Min: 12 Minutes
    • Maximum: 24 Minutes
  • Runtime With AP 300 S:
    • Min: 15 Minutes
    • Maximum: 30 Minutes
  • Runtime With AP 300.0 P:
    • Min: 20 Minutes
    • Maximum: 40 Minutes
  • Runtime With AP 500 S:
    • Min: 20 Minutes
    • Maximum: 40 Minutes
• Overall Length With Cutting Disc 82.1cm
• Sound Pressure Level 106dB(A)
• Sound Power Level 117dB(A)
• IP Rating IPX4
• Dimensions (L x W x H): 866mm x 280mm x 481mm
• Weight Without Batteries 9.1kg

Warranty:

• 2 Year Warranty for Personal, Domestic, Household or Farming use Covered by STIHL When Registered via STIHL
• 1 Year Warranty for Commercial, Government Use Covered by STIHL When Registered Via STIHL
