Description

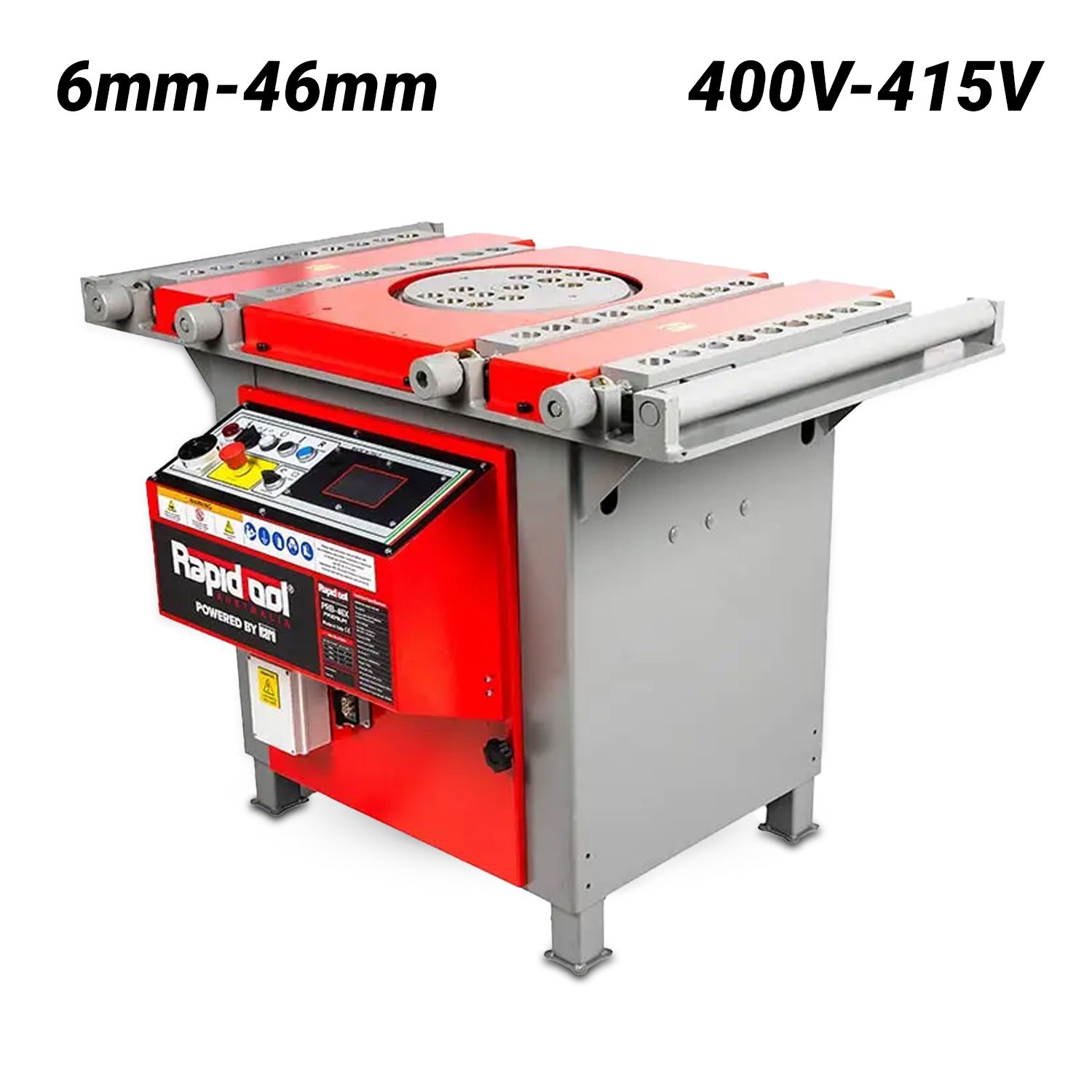

The RAPIDTOOL PRB-46X is a high-performance, industrial-grade rebar bender engineered for demanding construction environments. Designed to deliver precision, power, and long-term durability, this premium unit handles rebar diameters from 6mm to 46mm, making it an ideal solution for large-scale commercial, civil, and infrastructure projects.
Includes:
- 1 x Squaring Arm Set
- 1 x Large Diameter Arm*
- 1 x Foot Pedal
- 1 x Safety Guard
- Pins
- Bushings
Features:
- Fast, Clean Bends: Ideal for high-volume production
- Multi-Bar Processing: High-efficiency bending
- Bending Capacity: 6-46mm rebar (D500N)
- Advanced Digital Controls: Digitally preset multiple bend angles + built-in bend counter
- Bidirectional Bend Table: Enhanced flexibility and efficiency
- Heavy-Duty Three-Phase Motor: Built for continuous, high-output performance
- Foot Pedal Control: Flexible, ergonomic, and operator-safe
- Safety-First Design: Interlocked guards and door sensors
- Optional Tools: Ligature/stirrup, spiral and rebar ring forming tools available
- Industrial Frame: Maximum durability and long service life
- Precision and Speed: Production-grade performance
- European Engineering, Local Support: Built for Australia with parts and full servicing in Australia
Specifications:
- Poles: 4
- Rated Voltage: 400–415V 3~
- Rated Frequency: 50Hz
- Rated Power: 5.5kW
- Rated Current: 11.6A
- Number of Phases: 3
- Full Load Motor Speed: 1400 RPM
- Average Bend Cycle Speed: 8 RPM
- Rated Bending Diameter Range: 6–46mm (650MPa)
- Max Diameter of Bar & Number of Bars:
- 46mm – 1 bar
- 34mm – 2 bars
- 22mm – 3 bars
- Machine Dimensions (L x W x H): 900mm x 750mm x 850mm
- Weight: 775kg
