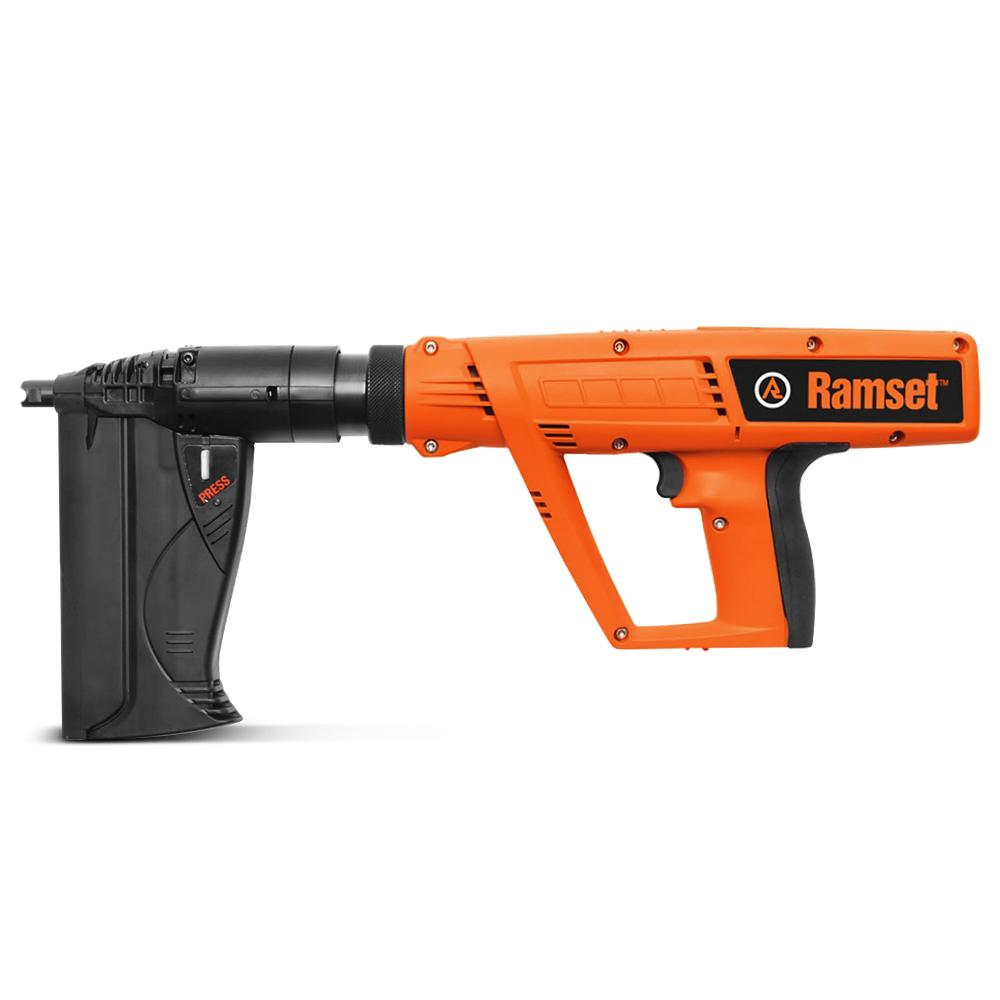

Ramset FRAMEBOSSXPM 75mm Magazine FrameBoss™ XP Automatic Powder Actuated Fastener Gun

Description

The Ramset FrameBoss XP is a fully automatic powder actuated tool that is capable of fixing 10 pins without the need to reload or cycle the tool. The automatic piston return system and 10 pin magazine allow for faster fixing rates with less effort. The magazine can be adjusted to lock into a number of positions to allow the tool to be used in confined spaces. The FrameBoss XP tool is also supplied with a single shot fastener guide to allow the tool to be used with longer fasteners and assembles such as brackets and clips. With a huge 400 joules of impact energy coupled with power adjustment, the tool can be used in a wide variety of applications e.g. Timber framing, formwork and the fixing of steel track. FrameBoss XP is designed to get the job done quickly and save you money.

Includes:

• 1 x Plastic Tool Case
• 1 x Single Shot Fastener Guide
• 1 x 10 Pin Magazine (75mm Maximum)
• 1 x Cleaning Brush
• 1 x Spall Guard
• 1 x Cleaning Cloth
• 1 x Ear Plugs
• 1 x Safety Glasses
• 1 x Instruction Manual

Features:

• Automatic piston return with no manual cycling
• 400J maximum impact energy
• 10 Pin magazine and single shot fastener guide
• 75mm magazine capacity
• 100mm single shot capacity
• Power adjustment
• Trigger lock
• Hand guard
• Easy to maintain on site
• Cushioned rubber grip

Applications:

• Timber framing to concrete or steel
• Steel track to conrete or steel
• Sacrificial formwork

Specifications:

• Magazine Capacity: 10 Pins
• Impact Force: 400J
• Fixing Capacity:
  • Timber to Concrete: 50mm
  • Timber to Steel: 50mm
  • Metal to Concrete: 3mm
  • Metal to Steel: 3mm
• Pin Capacity:
  • Single Shot: Up to 100mm
  • Magazine Shot: Up to 75mm
• Substrates: Concrete, Steel, Masonry
• Power Load: Strip Load 6.8 x 11mm (Green, Yellow & Red)
• Overall Length: 525mm
• Weight (Without Magazine): 3.7kg
