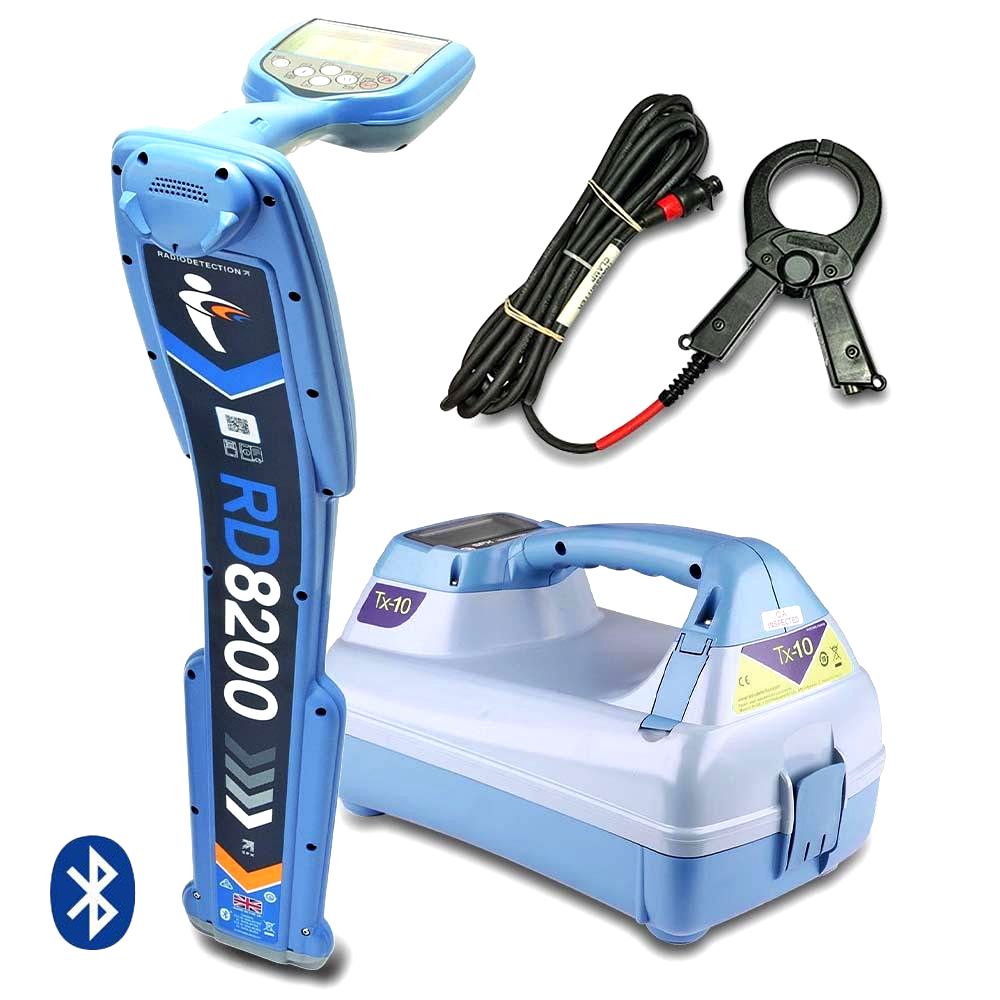

Radiodetection 10/8200-TX10B-100 Cable and Pipe Locator with Bluetooth and Transmitter with Bluetooth & 100mm Clamp

Description

Strike reduction and operational efficiency are the biggest challenges facing our customers – Solve these problems with the new RD8200. Designed with the operator in mind, it is our most advanced and capable range of precision locators. RD8200 locators and transmitters use transflective low power LCD technology that uses ambient light to improve screen readability in direct sun light and extend battery life.

Radiodetection’s TruDepth displays precise depth and current measurements, only when the RD8200 is correctly oriented above the target. Measurement consistency gives high confidence that the correct line is being followed. The RD8200 waterproof speaker housing has been tuned to provide optimum resonance for your choice of high or low frequency tones. 5 power output audio levels and vibration alerts, assist technicians working in challenging situations.

RD8200 locators offer many features designed to drive correct usage, reduce utility damage, improve safety and enhance your reputation.

Features:

• High contrast screen provides clarity even in bright sunlight
• Speaker and audio feedback – User facing speaker orientation, 5 levels of sound, choice of tone frequency. Designed to be heard in noisy environments
• Program up to 5 extra frequencies to customize the RD8200 to signals found on your network
• Survey Measurements with Bluetooth® Connectivity – store up to 1000 records and send wirelessly to a mobile device or PC using Bluetooth. Optional integrated GPS adds positional data without requiring an external device
• Locate over longer distances 90V signal output and automatic impedance matching
• 4 kHz frequency with Current Direction for locating and tracing higher impedance cables over longer distances
• Swing warning system alerts the operator of excessive swing
• Vibrating handle provides vibration alerts, leaving the operators to concentrate on their tasks
• High visibility reflective design helps protect operators and equipment
• Built for on-site use – IP65 Shock resistant, ingress protected casing protects against knocks, drops, water and dust
• A unique arrangement of five custom manufactured, precision ground antennas deliver locate accuracy and repeatability
• Lithium-Ion rechargeable battery packs (sold separately) for both locator and transmitter provide extended runtime with reduced running costs

Specifications:

• Sensitivity: 6E-15 Tesla 5μA at 1 meter (33kHz)
• Dynamic range: 140dB rms/√Hz
• Selectivity: 120dB/Hz
• Depth measurement precision: ± 3%
• Locate accuracy: ± 5% of depth
• Active locate filter bandwidth: ± 3Hz, 0 < 1kHz ± 10Hz, ≥ 1kHz
• Startup time: Less than 1 second
• Max depth readout:
  • Cable/pipe: 30m
  • Sonde: 19.5m
• Active locate frequencies: ELF (98/128Hz), 512Hz, 570Hz, 577Hz, 640Hz, 760Hz, 870Hz, 920Hz, 940Hz, 1090Hz, 1450Hz, 4096Hz, 8kHz, 8440Hz, 9820Hz, 33kHz, 65kHz, 82kHz, 83kHz, 131kHz and 200kHz
• Sonde frequencies: 512Hz, 640Hz, 8kHz and 33kHz
• Fault find: 8KFF and CDFF
• Fault find accuracy: 100mm
• Protection: IP65
• Audio: Built-in waterproofed speaker, 3.5mm headphone socket
• Display: High contrast custom made monochrome LCD
• iLOCTM remote transmitter control range: up to 450m
• Wireless connection: Bluetooth 2.0 – SPP profile, class 1, BLE 5.0
• Operating temperature: -20 to 50°C
• Dimensions (L x W x H): 648mm × 286mm × 125mm
• Weight: 1.9kg

Warranty:

• 3 Years Warranty via Registration covered by Radiodetection Australia

Radiodetection TX10B 10W Transmitter With Bluetooth

Based on a fully digital platform, the family of Radiodetection transmitters has been designed to support the range of Radiodetection RD7000+ and RD8000 cable, pipe and RF marker locators

The Tx-10 has a highest current and induction capability.

All models feature constant current across their entire bandwidth in either direct connect, clamp or inductive mode. The transmitters are light-weight (2.9kg), well-balanced and IP54 rated to cope with demanding environmental conditions. Each model has a removable accessory tray and a weatherproof battery compartment. A large, high contrast, backlit LCD screen provides the user with clear information.

90V output capability: All transmitters offer both 30V and 90V output options, resulting in higher signal current delivered on high impedance target lines than typical transmitters that only offer a 50V output. Higher signal levels are more locatable, and travel over longer distances.

SideStepauto™: allows the transmitter to calculate the optimum frequency based on ground impedance. The transmitter uses this information to optimize the active frequency. SideStep auto helps to improve locate accuracy and extends battery life.

To support the extended RD8000 iLOC feature set, the Tx-5B and Tx-10B can be ordered with integrated iLOC remote transmitter control.

The transmitter range features Direct Connect and induction frequencies compatible with locators across the RD8000 range, and can be easily customized to match your locator using the ‘model’ feature. The Tx-10B transmitter includes the additional ‘PTL’ model featuring the additional frequencies of the RD8000 PTLM locator.

A multimeter function enables quick measurements of output voltage, line voltage, current, impedance and power.

The transmitters are powered either by 8 standard D-cell batteries (rechargeable NiMH) or by the Lithium-Ion rechargeable battery pack (available as an option). Alternatively, the Tx range can be powered from a 12V vehicle source using a Radiodetection approved isolation transformer.

Note: The accessory tray includes a ground stake, direct connect leads and earth reel.

Includes:

• 100mm Transmitter Clamp
