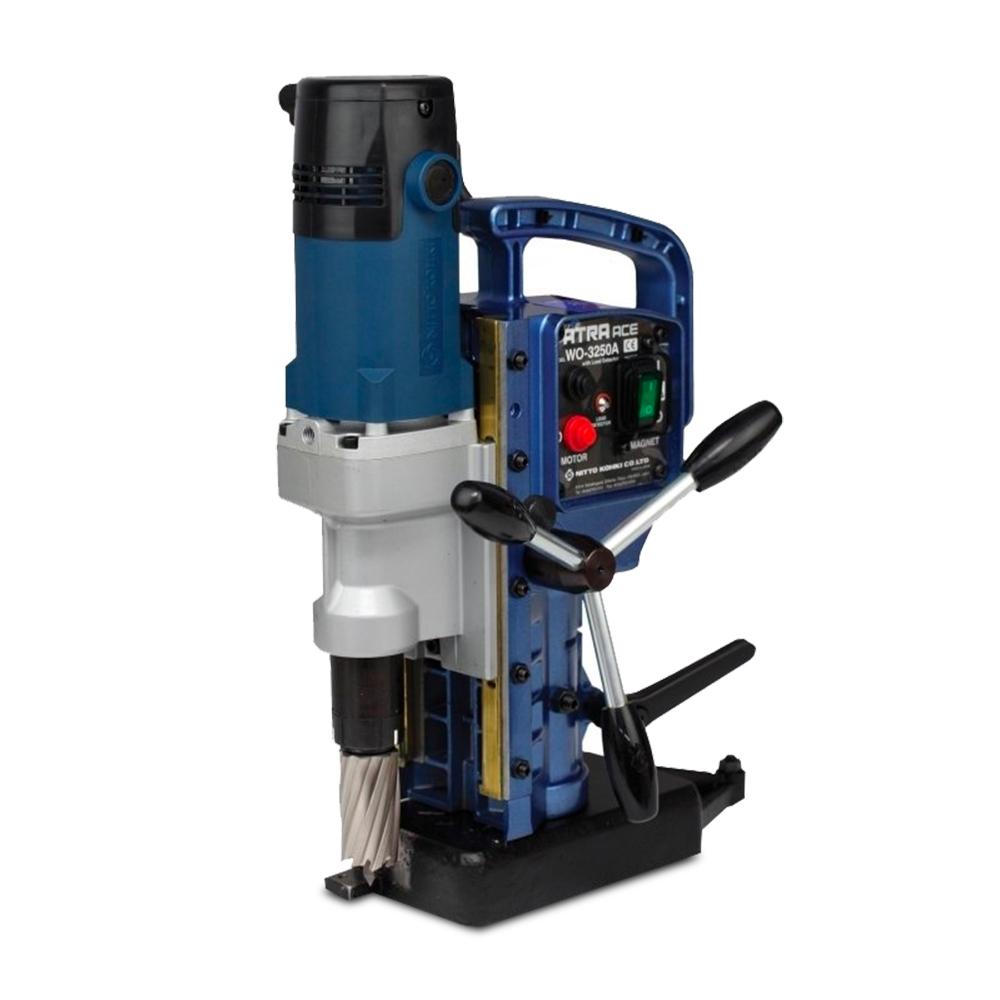

Nitto Kohki WO-3250A 950W 32mm Atra Ace Manual Drilling Machine – MADE IN JAPAN

Description

ATRA ACE is more compatible to user needs while offering greater operator safety. An optional One-Touch keyed chuck allows the use of up to 12mm twist drills. Newly developed Over-Load shutdown, magnet open-circuit sensor, and fail-safe restart technology formerly only found on high-end Nitto Kohki automatics is incorporated on the machine to further increase drill output while keeping costs down and safety paramount.

Includes:

• 1 x  Carry case

• On-site hole cutting in steel plates
• H-Beams shaped bars
• Framework
• Shipbuilding
• Bridge construction and repair
• Steel reinforcements
• Metal working
• Construction jobs

• Improved Overload Detection with LED Indicator
• Advanced Motor Design
• Magnet Switch Protector
• Fail-Safe Restart
• Reversible Feed Handles
• Complete with coolant tank

Specifications:

• Power Source (Single Phase): 220~240V AC 50-60Hz
• Rated Power Consumption: 950W
• Rated Current: 4.3A
• No Load Speed: 530RPM
• Magnetic Power Consumption: 70W
• Magnetic Holding Power – 900kg/f
• Magnetic Dimension: 99mm X 177mm
• Hole Cutting Capacity: 32mm
• Max. Plate Thickness: 50mm
• Dimensions (L x W x H): 318 mm x 194mm x 361mm
• Weight: 13kg
