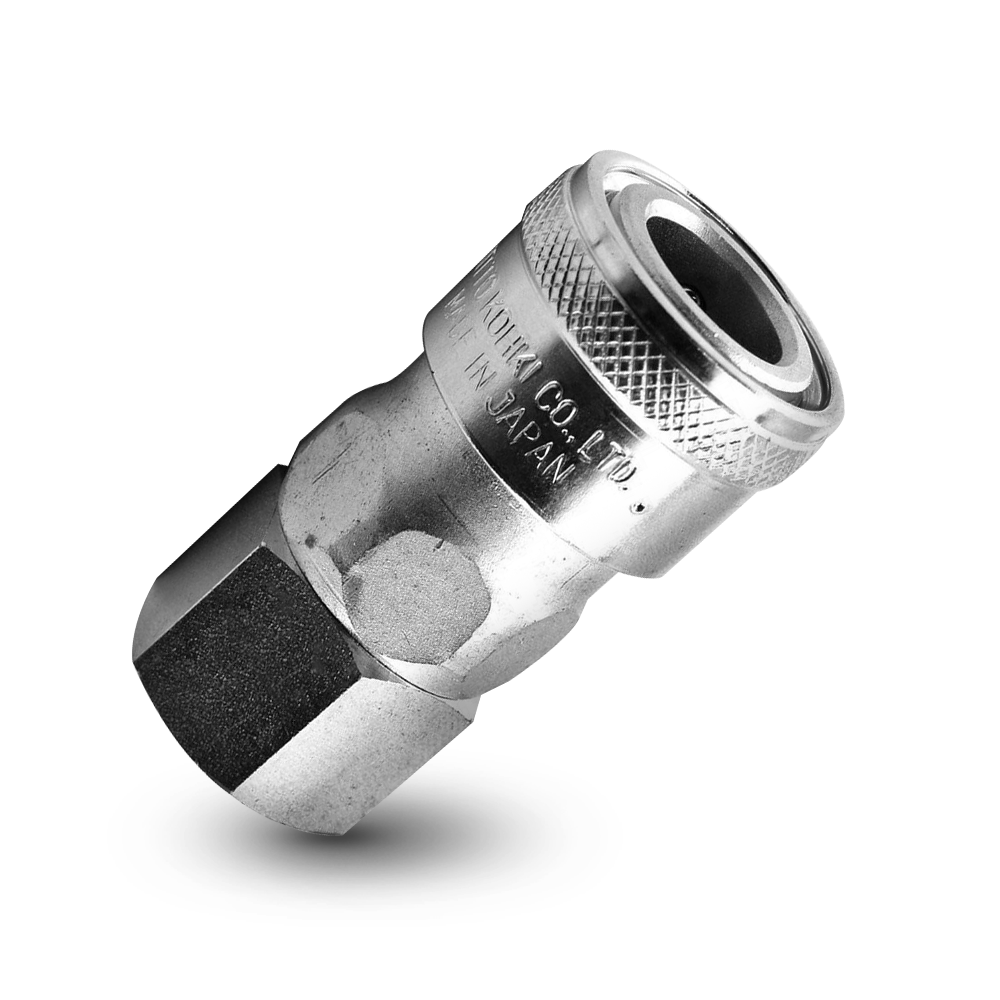

Nitto Kohki 20SF 1/4″ Socket Female – MADE IN JAPAN

Description

Nitto Kohki 20SF 1/4″ Socket Female Hi Cupla offers universal coupling and provides excellent durability and application characteristics.

Suitable for:

• Connecting factory air supply to pneumatic tool hoses
• Handling a wide range of tasks from plant air piping to air tool hose connections
• Standard Hi-Cupla and Hi-Cupla 200 series

Features:

• Made in Japan
• Important structural parts are hardened for added strength
• SF suits male thread connection
• Design allows for quick connection/disconnection action
• One-way automatic shut-off valve in the socket
• Wide variety provides best choice according to application
• Hardened important parts are extremely wear resistant and durable
• Tested 100,000 times, coupler connection is accurate and reliable.

Specifications:

• Type: Hi-Cupla
• Material: Steel (Chrome Plated)
• Size: 1/4 inch
• Thread Type: BSP
• Thread Size: 1/4 inch
• Working Temperature: -20 to 80 °C
• Working Pressure: 215 psi
