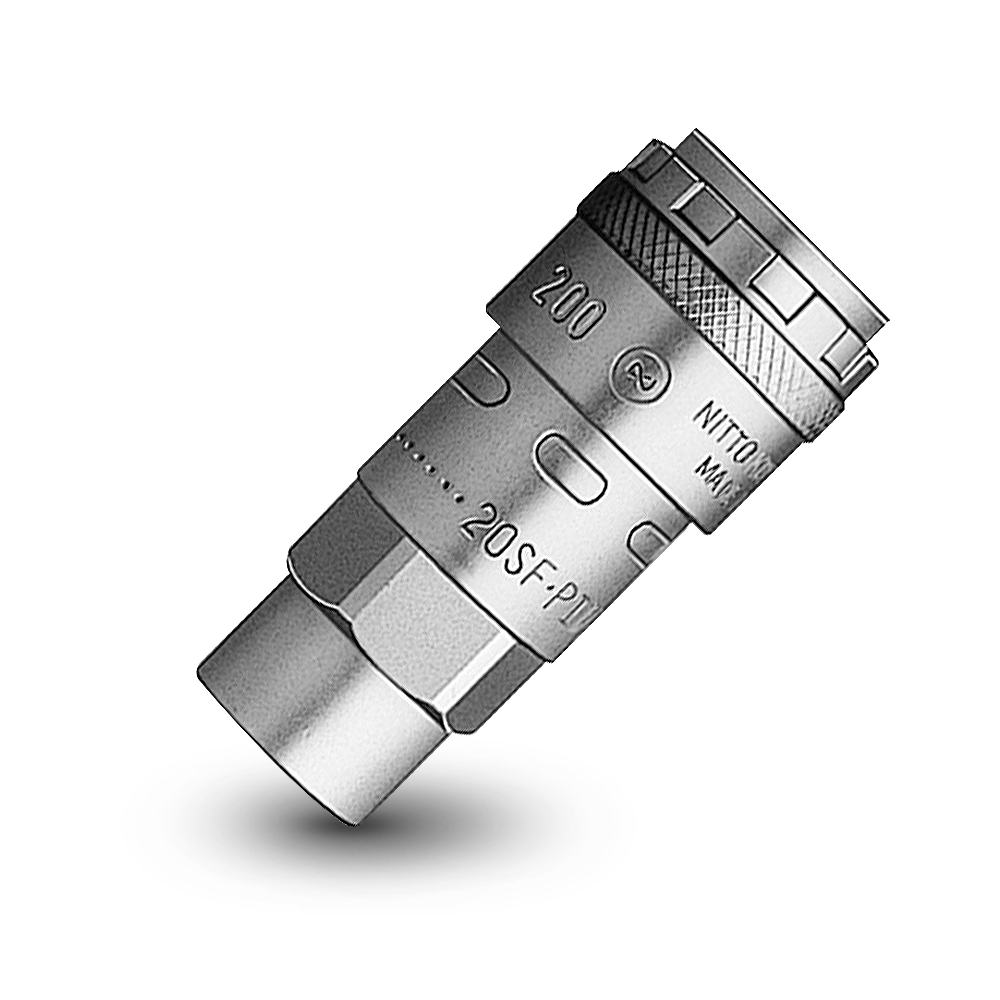

Nitto Kohki 200-20SF 1/4″ One Touch Socket Female – MADE IN JAPAN

Description

Nitto Kohki 200-20SF 1/4″ One Touch Socket Female offers universal coupling and provides excellent durability and application characteristics.

Suitable for:

• General purpose workshop fittings
• Air lines

Features:

• One touch connection, push-to-connect for more convenient swapping of tools and accessories
• SF suits male thread connection
• Large flow rate, valve structure allows more fluid flow
• Simple and secure connection made easy to connect and disconnect, particularly in narrow and hard to reach places
• New valve structure provides low pressure loss and increases flow rate (15% more air flow over standard series Hi-Cupla)
• Free swivelling eliminates hose kinking
• Hardened parts providing extreme wear resistance and durability
• Interchanges with Nitto standard Hi-Cupla Applications


Specifications:

• Material: Steel (Chrome Plated)
• Size: 1/4 inch
• Thread Type: BSP
• Thread Size: 1/4 inch
• Working Temperature: -20 to 80 °C
• Working Pressure: 215 psi
