Description

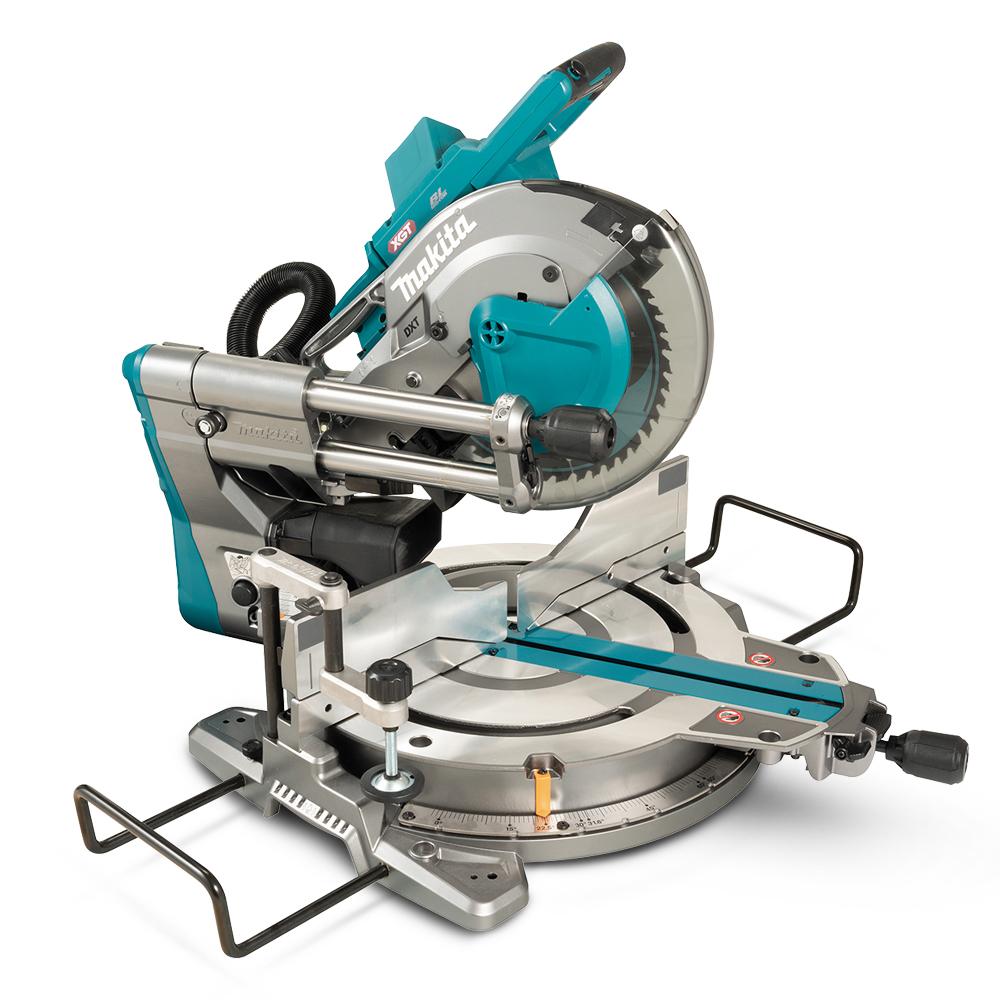

The 40V Max Brushless 260mm (10-1/4“) Slide Compound Saw delivers high performance in a compact design. With a 3,600rpm cutting speed and constant speed control, ensuring the blade speed doesn’t drop even in high load applications. The LS004G is packed full of features with a rail forward design, AWS, Electric brake and ridged extendable sub-tables. The ultra smooth rail design allows for minimal resistance when cutting and ensures the saw can be placed against a wall maximising work space. Also compatible with AWS technology the saw features superior dust extraction. With dual extraction ports and a specifically designed blade case the LS004G extraction rate is extremely efficient. Electric brake provides additional safety while the LED light casts a shadow line onto the material displaying the exact cutting line allowing the user to work more efficiently.
Includes:
- 1 x 260mm 45T Efficut Wood Blade (B64646)
- 1 x Vise Assembly (126617-2)
- 1 x Dust Bag Assembly(122852-0)
- 1 x Triangular Rule (762001-3)
- 1 x Hex Wrench 6 (781044-6)
Features:
- Forward Rail Design maximizes workspace and provides smooth precise cutting
- Shadow line projects cut line onto work material
- Dual-zone dust extraction ports suppress dust scattering of wood chips
- Constant speed control maintains cutting speed under heavy load
- Compatible with AWS* for wireless connectivity with compatible dust extraction – * Requires optional wireless transmitter
Specifications:
- Voltage: 40V Max
- Cutting capacities at 0°:
- Max. width: 68 x 310mm
- Max. height: 91 x 279mm
- Cutting capacities at 45° mitre
- Max. width: 68 x 218
- Max. height: 91 x 197
- Bevel capacity: 48° left – 48° right
- Mitre capacity: 60° left – 60° right
- Blade diameter: 260mm (10-1/4″)
- Bore diameter: 25.4mm
- No load speed: 3,600rpm
- Overall length: 805mm
- Weight: 25.9kg
