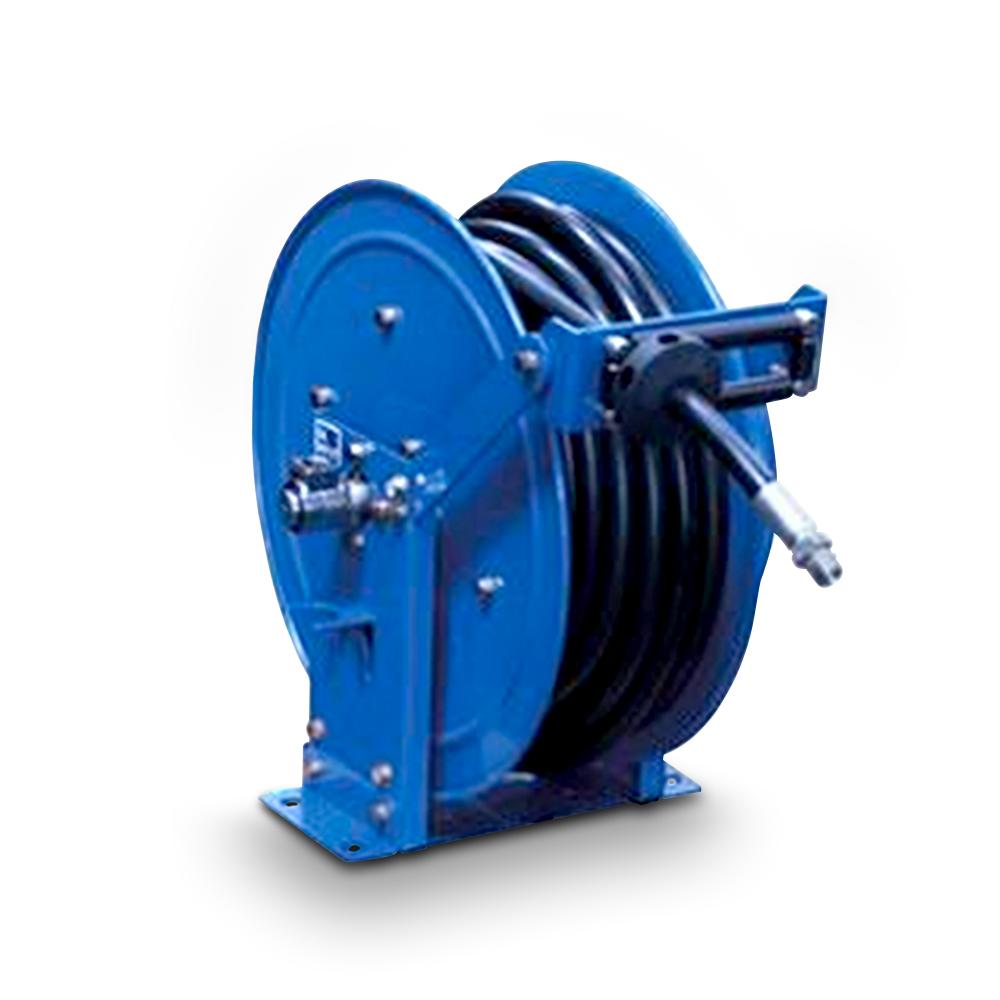

Description
Macnaught heavy duty hose reels are provided with twin pedestal supports and are particularly suitable for truck mount applications where stability and strength is required. All spring rewind models have an external spring cartridge allowing for easy maintenance and safety as the cartridge can be replaced without removing the reel from its mounted position. Constructed of powder coated steel with heavy duty swivel and a mechanism that allows for the hose to stop at any point
Features:
- Twin pedestal design for strength and stability – ideal for vehicle applications
- 4 bolt heavy duty steel mounting plate
- Locking mechanism allows for precise hose length adjustment
- Adjustable guide arm – can be wall, floor, ceiling, pit or vehicle mounted
- Multi directional nylon roller guides reduce hose drag and wear
- External spring cartridge (except powered rewind diesel reel) for easy maintenance & safety
- Full flow heavy duty swivel for maximum product delivery
- Powder coated finish for corrosion resistance
- 10 year parts availability
Specification:
- Description: Oil
- Hose ID: 19mm (3/4)
- Hose length: 20m
- Working Pressure: 6900 kPa (1000 psi)
- Hose Rewind Max OP Temp Spring: 100°C
- Reel Inlet: 3/4″ BSP
- Hose Outlet: 3/4″ BSP
Warranty:
- 5 year warranty
