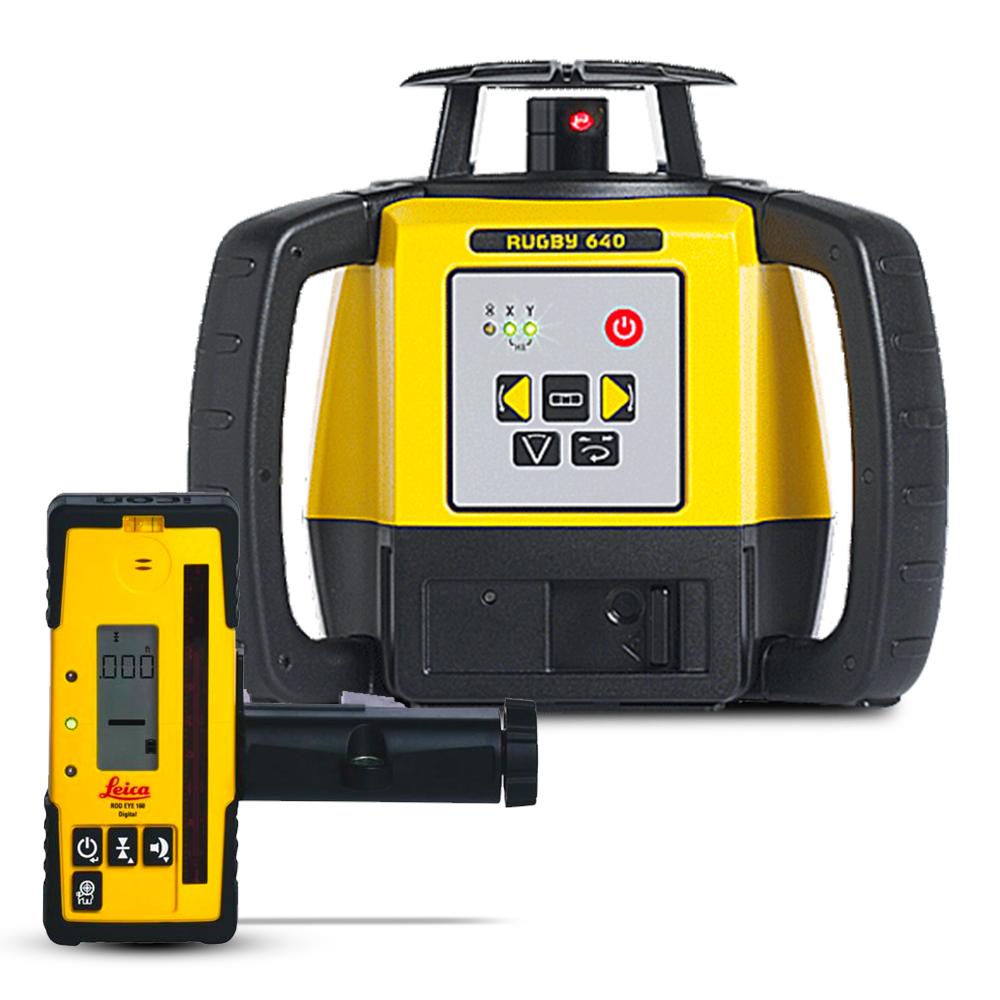

Leica Rugby 640 (LG6005989) Red Beam Rotary Laser with Digital RodEye 160 Receiver

Description

Includes:

• Rugby 640
• Rod Eye Receiver
• Protective case
• Alkaline Batteries

Features:

• Fit for any interior and exterior levelling, aligning and squaring application
• Scan 90 – make layout easier by quickly moving the beam to the left or right side
• Plumb Down – automatic and accurate plum down direction for alignment over a reference point
• Sleep Mode – save battery and put the Leica Rugby into sleep mode without disturbing your set up

Specifications:

• Versatility inside and outside
• Fit for any interior and exterior levelling, aligning and squaring application
• Scan 90° make layout easier by quickly moving the beam to the left or right side;
• Plumb Down – automatic and accurate plum down direction for alignment over a reference point
• Sleep Mode – save battery and put the Leica Rugby into sleep mode without disturbing your set up
• 800m (2600ft) working diameter and +/- 1.5mm of accuracy at 30m

Leica Rod Eye 160 Laser Level Receiver with Bracket

Features:

Digital Readout -The large numbers are clear and easy to read, so you can stay on grade. The 21 step arrow displays provide a graduated reference as you lock on the laser beam.

• LCD Indication – Two, large graphic displays on the front and back of the receiver.
• LED Indication –  Three bright LED’s can be used as a ready reference for the receiver position.
• Capture Function – The capture button allows the user to store and display a measurement.
• Menu Function – Additional options are available to set your functional preferences.
• Level Vial – Ensures good alignment and improves your reading accuracy.
• Exceptional Reception
• The extra long reception window includes the unique technology that provides the accurate digital input.
• Audio Indication
• Four audio settings. Up to 110 decibels for noisy jobs.
• Units of Measure
• Digital information is displayed above and below grade in mm, cm, inches, fractions of inches and feet.
• Versatile Rod Bracket
• A rugged rod clamp ensures solid mounting to the grade rod. The circular level vial aids to keep your grade rod plumb.
• Protective Overmold
• Protects the receiver from drops in tough jobsite conditions
• Anti-strobe Protecton
• Detects and ignores the flash from strong strobes on the job so that they will not interfere with the receiver function.
• Beam Finding
• Passing the receiver through the laser beam will cause the receiver to beep twice quickly.
• Out of Beam Display
• If the detector is moved out of the detector range, the arrow display will indicate the direction to move to return to the laser beam.
• Laser Low Battery
• A small laser icon on the receiver display alerts the user when the batteries are getting low

Specifications:

• Working diameter (laser dependent): 1350m
• Detection height: 120 mm
• Numeric readout height: 90 mm
• Detectable spectrum: 600 nm to 800 nm
• Very fine: ± 0.5 mm Fine: ± 1.0 mm
• Medium: ± 2.0 mm  Coarse: ± 3.0 mm
• Very coarse: ± 5.0 mm
• Audio volumes: 105 dBA / 95 dBA / 65dBA / Off
• Automatic shut off: 10 minutes
• Digital readout: Units: mm, cm, in, in (fractions), ft
• Arrow display: 15 channels
• Anti-strobe protection: Yes
• Memory, last beam strike: Yes
• Beam finding (double beep): Yes
• Laser low battery indicator: Yes
• Warranty: Three years
• Environmental: IP67
• Batteries: 50+ hours (2 x 1.5 V “AA” )
• Dimensions: 173 x 76 x 29mm
• Operating temperature: -20°C to +50°C
• Storage temperature (except batteries): -40°C to +70°C
