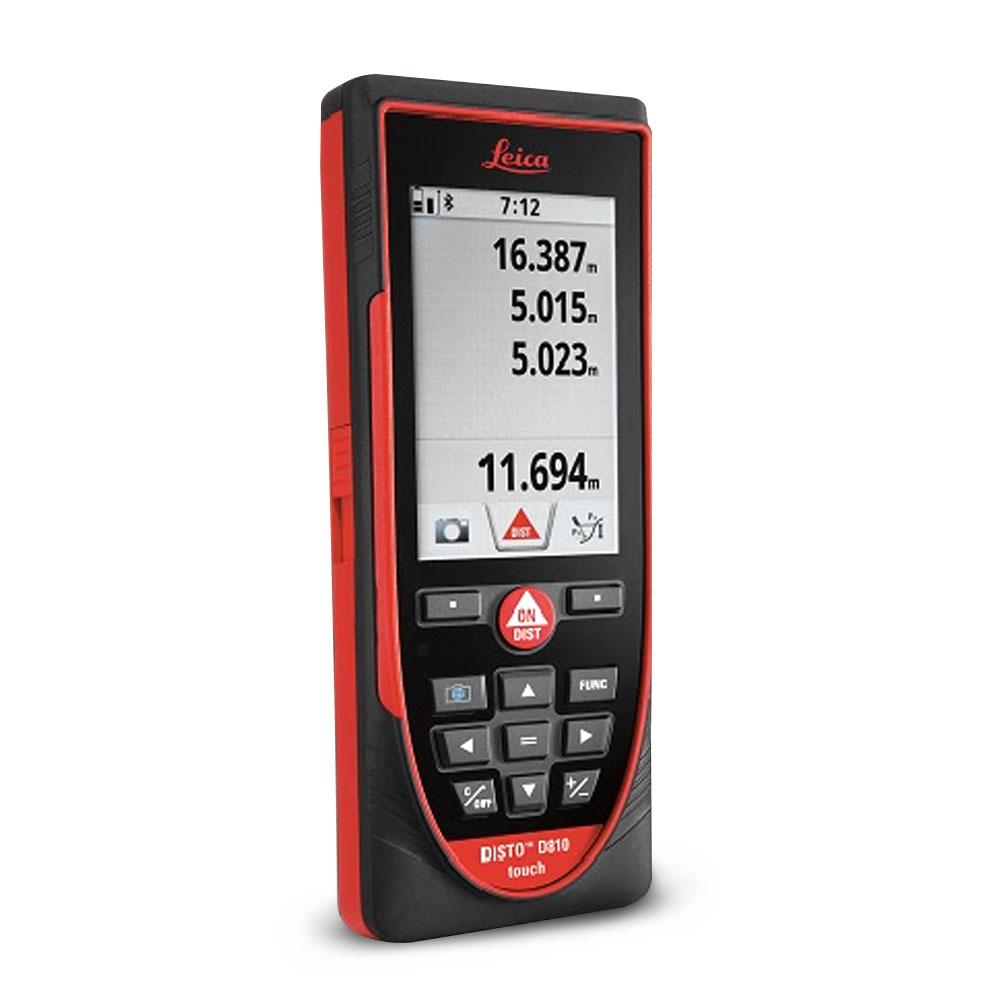

Leica Disto D810 (LG792297) Disto D810 Laser Distance Measuring Device

Description

The Leica DISTO™ D810 Touch is a 15 measurement mode LDM accurate to 1/16th of an inch. It features a touch screen UI,  integrated digital camera, a tilt sensor, and Bluetooth Smart.

The D810’s exclusive Measure in Picture (MIP) technology can determine the height, width, area, diameter, or circumference of an object in a picture taken by the D810.  Bracket your target using pointers on the touch screen to remotely measure the width of a second story window, the area of a billboard, or the diameter of an above-ground tank.

With a 200m-plus range, the D810 Touch can acquire a target that is well beyond your eye’s ability to see the laser point, especially outside. The point finder — a 4x zoom digital camera with cross hairs on the LCD display — solves this problem.

The farther you can shoot, the more obstacles there are to get in the way. Smart Horizontal allows you to shoot over obstacles so you can measure the level horizontal distance to your target.

At distance, even a small wobble in the tool translates to the laser point bouncing in wide arcs on your target. For best results when measuring long distances, keep your dot steady with a tripod and an adapter.

Features:

• Bluetooth Smart 4.0 – send measurements directly to your apps
• Measure in picture – take pictures to get heights, widths and areas
• Determine the diameter of cylindrical objects, such as tanks
• Single measurement 201m range
• Smart horizontal mode – determines the level horizontal distance to a target when you have to shoot over an obsticle
• Min/Max Function – just sweep the laser point into a corner. The longest measurement is recorded!
• Area / Volume – determines the area of a rectangle or square in two shots
• Triangle Room function – does the room have more than four corners? No problem! Thise mode will do all the work!
• Painter Function
• Pythagoras Function
• Trapezium Function
• Sloped Object Measurement
• Height Tracking
• Height Profile Tracking
• Stake Out Function
• Touch Screen makes it easy for you to switch between functions in picture mode!
• Building Information Modelling
• Accurate to 1/16 of an inch – thats right! A 16th of an INCH.
• 4x Zoom Pointfinder Camera – Your display can show you where the dot is if the naked eye can’t see it!
• 360° Tilt Sensor
• Intelligent Endpiece for correct alignment
• Add & Subtract function
• Memory Stores The Last 30 Displays
• Timer – set the timer to delay a measurement the way you would a camera!
• IP 54
• Dual Lense Cameras for a wild field of view
• USB port to plug into the wall or computer
• Rechargeable battery!
• Inbuilt Compass
• Personalise your favourite buttons!

Specifications:

• ISO 16221-1 Certified Typical Measuring Accuracy: ± 1mm
• ISO 16331-1 Certified Typical Measuring Range: Up to 201m
• Measuring Units: 0.000m, 0.0000m, 0.00m, 0.00ft, 0’00”, 1/32, 0.00in, 0 in 1/32
• Power Ragne Technology: Yes
• Pointfinder With 4x Zoom: Yes
• Overview Camera: Yes
• Photograph File Format: .jpg
• Memory: Last 30 Displays
• Windows Software: DISTO Transfer with AutoCAD plugin
• Free App: iOS / Android
• Data Interface: Bluetooth V4.0 Smart
• Measurements Per Set of Batteries: Up to 4000
• Multifunctional End-Piece: Automatic recognition of measurement position
• Batteries: Li-Ion rechargeable
• Tripod Thread: 1/4″ – 20
• Protection Class: IP54 – splash water/dust proof
• Dimensions: 162 x 61 x 31mm
• Weight with batteries: 128g
• Tilt sensor measuring range: 360°
