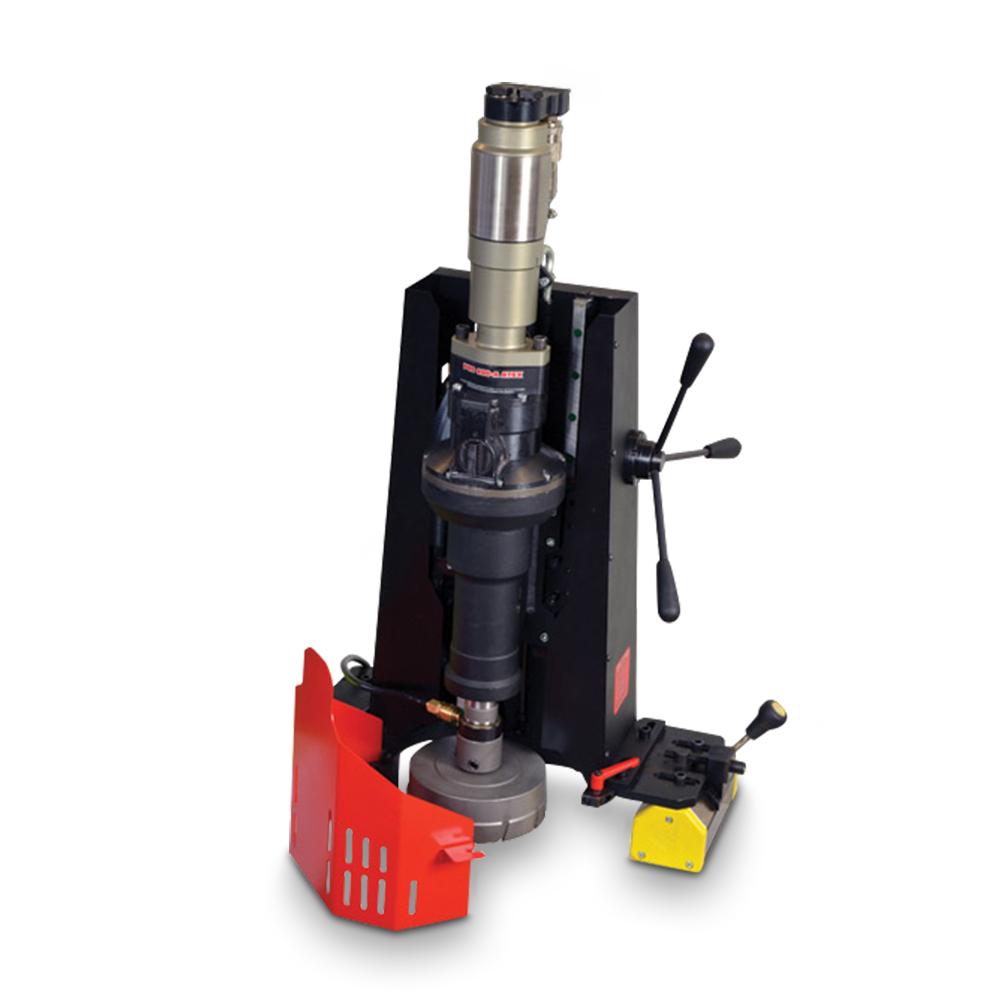

Holemaker HM-PRO200A 200mm Dia Cap 5mt Air 200 (Pneumatic) Magnetic Base Drill – MADE IN EUROPE

Description

The PRO200A is a new pneumatic portable magnetic drilling machine with 200mm diameter drilling and M52 tapping capacity. The spindle bore is No.5 Morse Taper and the drill chuck is 1-1/4″ Weldon. The PRO200A is a robust design built with modular construction and can be handled by a single operator.

Features:

• 2 speeds – ideal for drilling and tapping.
• Integrated air processing module.
• 2 x 14700Nm magnetic adhesion force.
• Adaptive magnets, can work on curved or flat surfaces.
• Integrated swarf guard.
• Reverse.
• Both the machine and the body of the PRO200A drill is certified ATEX II2G/D C IIC T6;T4 and meets the requirements for use in areas with a risk of explosion.

Specifications:

• Motor Speeds (under load):
• 20 rpm (gear I)
• 80 rpm (gear II)
• Motor Power: 3650 W
• Air consumption: 3500 l/min (125 CFM)
• Pressure: 6.5 bar
• Air connection: G1/2″ external thread
• Spindle: MT5
• Tool holder: 31.75 mm Weldon (1-1/4″)
• Max milling capacity: 200 mm (7-7/8″)
• Max drilling capacity: 45 mm (1-3/4″)
• Max Tap size: M48
• Stroke: 400 mm (15-3/4″)
• Max depth of cut: 100 mm (4″)
• Magnetic clamping force: 2 × 15.000 N
• Min. workpiece thickness: 13 mm (1/2″)
• Required ambient temperature: 0–40°C (32–104°F)
• Max Working Height: 991mm
• Max Working Width: 900mm
• Max Working Length: 528mm
• Weight: 130 kg (290 lbs.)
