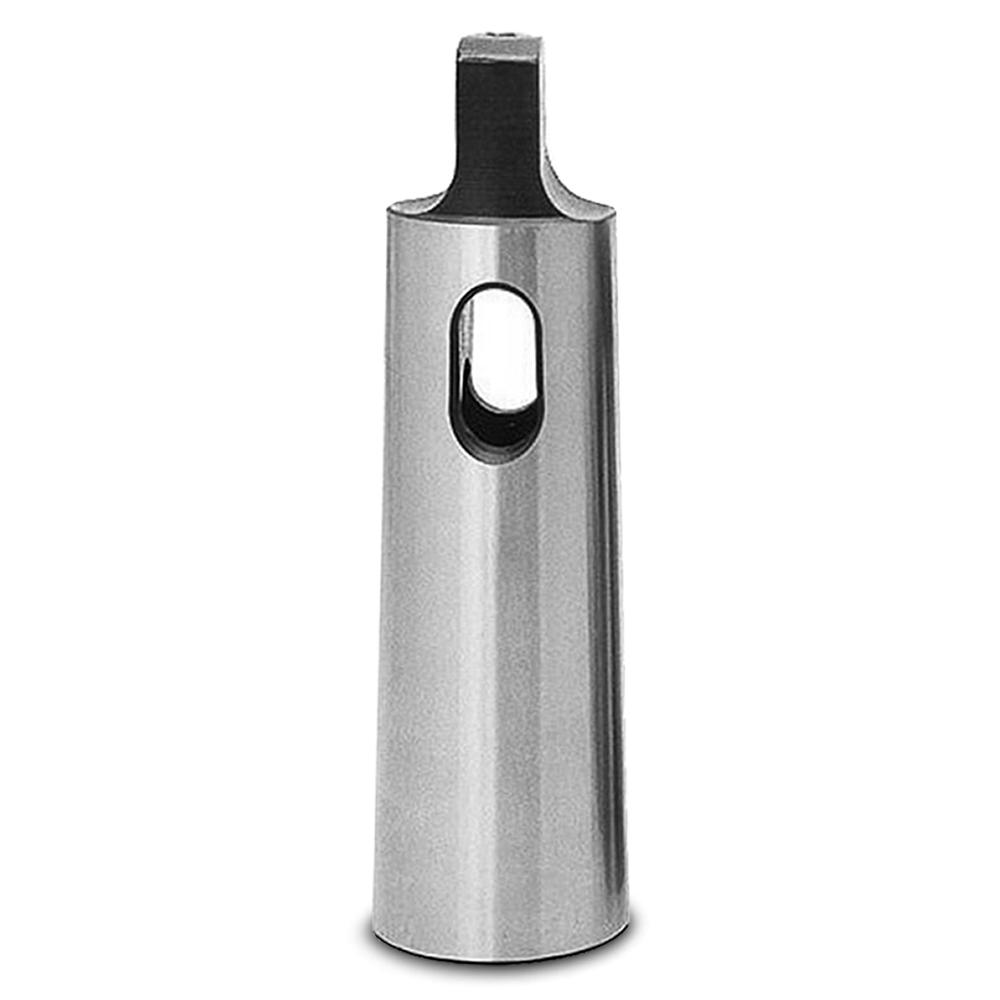

Groz GZ-08423 (DSA/3-2) Morse Taper Reduction Drill Sleeve H&G 3 – 2MT

Description

Drill Sleeves are used to adapt smaller morse taper shank tools to larger machine spindles. This A Grade (Hardened and Ground), manufactured from case hardened Hi Tensile steel, with permanent marking of size on the tang ensures convenience in use.

Features:

• The concentricity and taper angles are precisely controlled which allows perfect locking and concentric movement to the tool held
• A Grade (Hardened and Ground), manufactured from case hardened Hi Tensile steel (20 MnCr5/SAE 8620), these are fully hardened and are ground on the inside and outside
• Permanent marking of size on the tang ensures convenience in use

Specifications:

• Sleeve Type: A Grade
• Material: Case Hardened Steel
• Surface Finish of External Taper: Ground
• Surface Finish of Internal Taper: Ground
• Body Hardness: 54-58HRC
• Tang Hardness: 54-58HRC
• Morse Taper:
• Outisde: 3
• Inside: 2
• Length: 112mm
