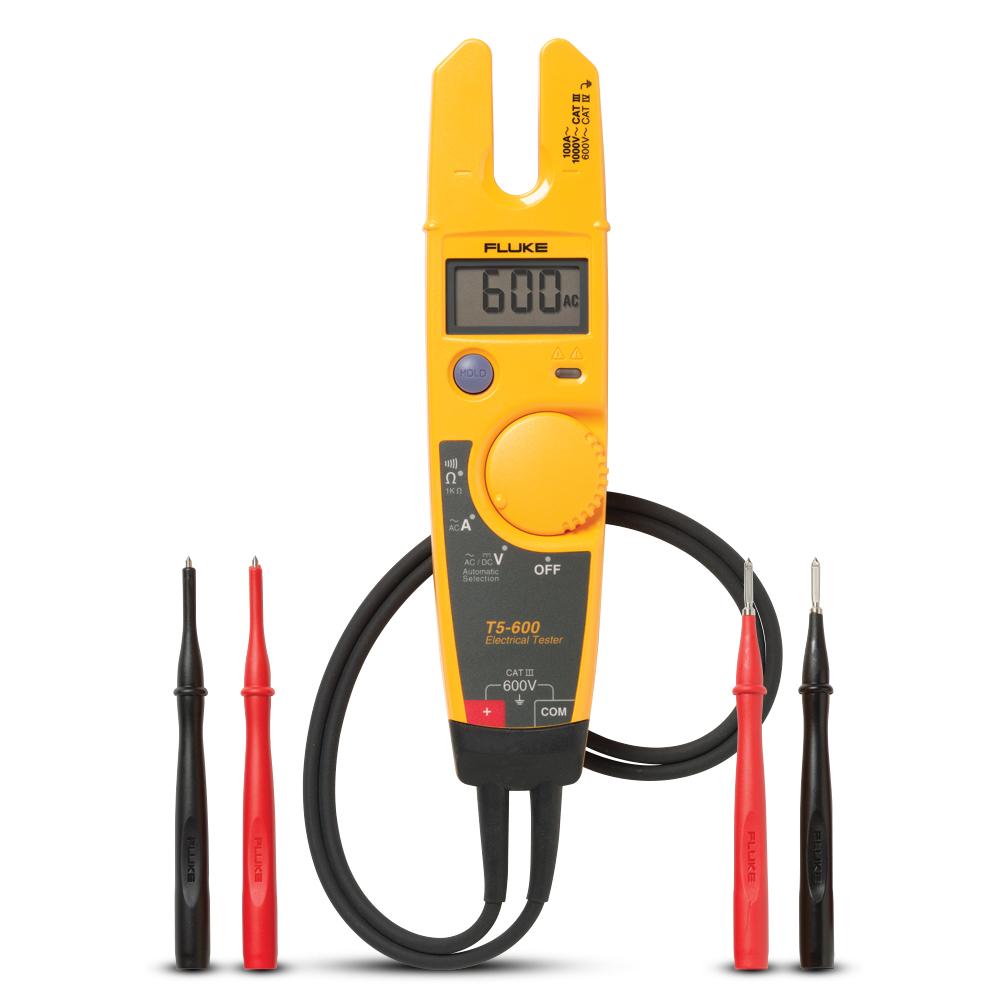

Fluke T5-600 USA (648227) T5-600 Voltage Continuity and Current Tester

Description

The T5-600 Voltage Continuity and Current Tester is a versatile troubleshooting tool for up to 600 V environments. Use it to check voltage, continuity, and current with one compact tool. Just select volts, ohms, or current and the tester does the rest. Its OpenJaw current measurement lets you check current up to 100 A without breaking the circuit.

Detachable SlimReach test probes are customised for national electrical standards. Plus, its tough test leads accept optional accessories such as clips and specialty probes. The test leads stow neatly in the back of the tester, making it easy to carry in your tool pouch. Add the optional H5 holster and you can clip the T5-1000 onto your belt. For higher voltage applications check out the Fluke T5-1000.

Model Comparison:

• Fluke T51000 T5-1000 Voltage, Continuity and Current Tester – Measures up to 1000 volts and current, requires test leads
• Fluke T6-600 600V Electrical Tester – Measures up to 600 volts and current without test leads
• Fluke T6-1000 1000V Electrical Tester – Measures up to 1000 volts and current without test leads

Features:

• Compact design with handy probe storage
• Withstands a 10 ft. (3 m) drop
• Includes detachable SlimReach™ probe tips that are customised for national electrical standards
• Can stay connected much longer than solenoid type testers
• Offers Auto-off mode to conserve battery life
• Fits into an optional holster that attaches to a belt and neatly stows test leads

Specifications:

• Jaw opening: 12.9 mm (0.5 in)
• Max wire size: 1/0 THHN Cable
• Current range AC rms: 0 to 100.0 A
• Accuracy AC current: (50/60 Hz)3% ± 3 counts
• AC response: Averaging
• Voltage range: AC/DC0 to 600V
• Voltage accuracy:
• AC: 1.5% ± 2 counts
• DC: 1% ± 1 count
• Resistance range: 0 to 1000 Ω
• Continuity beeper threshold: On at < 25 Ω, off at > 400 Ω
• Volts indicator LED threshold: Guaranteed on by 30V AC
• Operating temperature: -10°C to 50°C
• Storage temperature: -30°C to 60°C
• Humidity (without condensation):
• 0% to 95% (5°C to 30°C);
• 0% to 75% (30°C to 40°C);
• 0% to 45% (40°C to 50°C)
• Dust/water resistance: Yes
• Operating altitude: 2000 meters max
• Temperature coefficient: 0.1 x (specified accuracy)/°C (< 18°C or > 28°C)
• Battery life: 200 hour zinc chloride, 400 hour alkaline
• Battery type: 2 x AA
• Low battery indicator: Yes
• Current sensor opening: 12.9 mm
• Dimensions (W x D x H) 30.5 x 51 x 203mm
• Weight: 0.3kg
