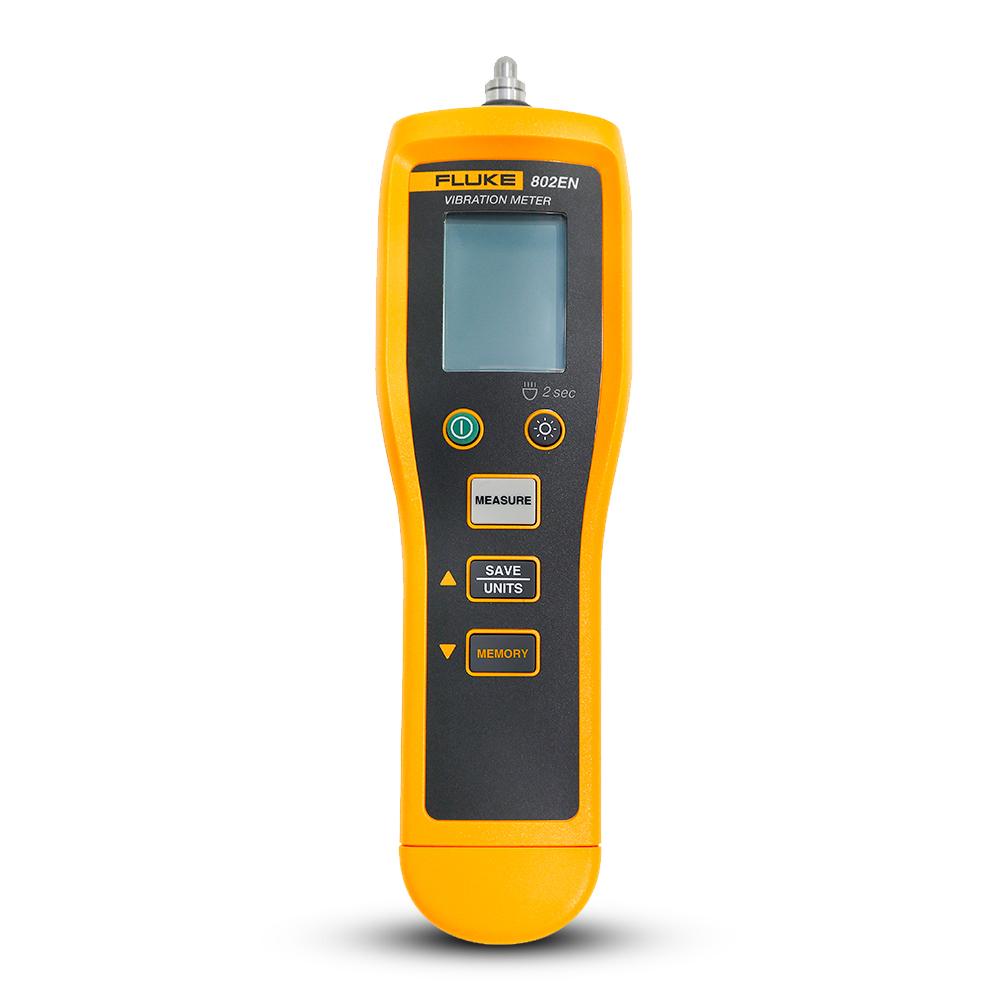

Fluke FLUKE-802EN (5342355) Vibration Tester

Description

The Fluke 802EN Vibration Meter reaches the highest standards in terms of repeatability and test accuracy in the industry, which is certified by Certified Management Consultant (CMC).

Make go or no-go predictive maintenance decisions with confidence. The Fluke 802EN Vibration Meter allows your customers to easily assess the state of their in-service equipment and determine whether maintenance is required. With only one button your customer can switch between displacement, velocity, and acceleration measurements.

The Fluke 802EN Vibration Meter has optional accessories to help measurement under different industry conditions. The meter also supports extension rod, external sensor, and earphone connected for various applications (all sold separately).

Includes:

• 2 x AAA Batteries
• 1 x Soft Case

Features:

• Three measurement modes meet complex test environment of industrial sites
• High repeatability ensures consistent measurement accuracy
• One-button measurement to measure assessment value immediately
• One meter drop test, rugged and durable
• Data capacity of 99 sets, replaying in real-time
• Flashlight design, it is convenient for measurement at night
• Audio output for detection of abnormal machine sounds

Industry Applications:

• Power Plant
• Petrochemical
• Coal Chemical
• Steel
• Other Process Industries

Specifications:

• Sensitivity (typical): 10.00 mV / m/s² ± 5% (1 g = 9.8 m/s²)
• Measurement:
• Acceleration:
• Range: 0.1 m/s² to 199.9 m/s² peak (rms √2)
• Resolution: 0.1 m/s²
• Accuracy:
• ± (5 % + 2 dgt) (LO: 10 Hz to 1 kHz)
• ± (10 % + 5 dgt) (HI: 1 kHz to 10 kHz)
• Velocity:
• Range: 0.1 mm/s to 199.9 mm/s rms
• Resolution: 0.1 mm/s
• Accuracy: ± (5% + 2 dgt) (10 Hz to 1 kHz)
• Displacement:
• Range: 0.001 mm to 1.999 mm peak-peak (rms 2√2)
• Resolution: 0.001 mm
• Accuracy: ± (5 % +2 dgt) (10 Hz to 1 kHz)
• Piezoelectrical Accelerometer:
• Typical frequency response: 10 Hz to 15 kHz
• Amplitude Units:
• Acceleration: g, m/s²
• Velocity: mm/s
• Displacement: mm
• External Piezoelectrical Accelerometer:
• DC bias voltage: 6 V dc to 7 V dc
• DC bias current:3.5 mA
• Battery: 2 AAA, IEC LR03
• Battery life: 25 hrs for measurement
• Dimensions (L x W x H): 241mm x 71mm x 58mm
• Weight: 220g
• Audio port: Stereo audio output jack (3.5 mm Audio Plug)
• External sensor port: M12 plug
• Environment:
• Operating temperature: -10 °C to 50 °C
• Storage temperature: -30 °C to 60 °C
• Operating humidity: 30% to 90% RH (non-condensing)
• Operating altitude: 2,000 m
• Storage altitude: 12,000 m
• Ingress Protection: IP 40
• Vibration limit: 500.0 m/s² peak
• Drop test: 1 m
• Electromagnetic Compatibility (EMC): International IEC 61326-1: Portable, Industrial Electromagnetic Environment; CISPR 11: Group 1, Class A

Warranty:

• 1 Year Standard Warranty Cover By Fluke
