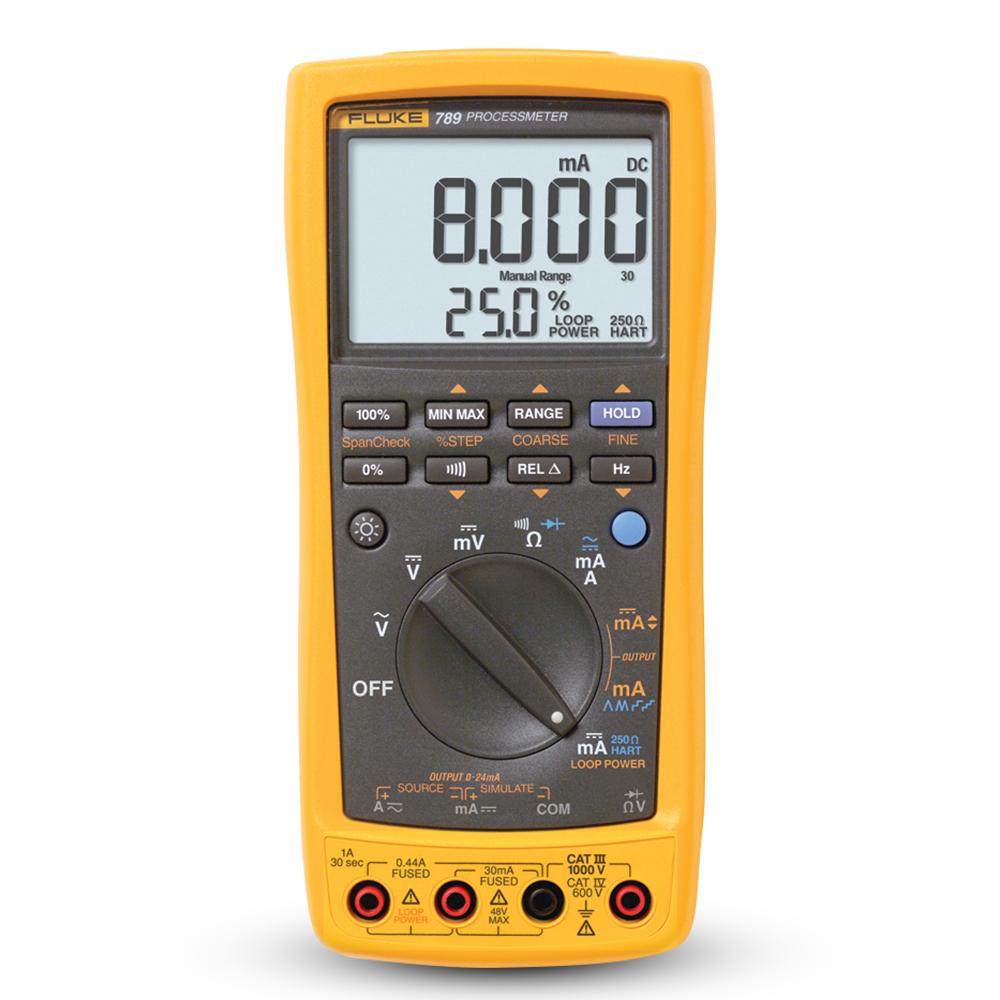

Fluke FLUKE-789 (1633984) Process Meter

Description

The Fluke 789 ProcessMeter is the ultimate troubleshooting tool for electricians and instrumentation professionals. It combines the functionality of a loop calibrator with the power of a digital multimeter, and the wireless capabilities of Fluke Connect connectivity with optional IR3000FC module. The 789 has a display that’s not only twice as large as the Fluke 787B, but also twice as bright with two levels of backlighting. And its built-in, selectable 250 ohm HART® resistor eliminates the need to carry a separate resistor. The 789 also has a 24-Volt loop supply, which reduces the need to carry a separate power supply when doing offline transmitter testing. You can add an optional temperature measurement module and the wireless data logging capabilities of the Fluke Connect™ mobile app to log data wirelessly to your smart phone and review it from a remote location. So now process technicians can do a lot more while carrying a lot less.

Features:

• Ultimate troubleshooting tool for electricians and instrumentation professionals
• Combines the functionality of a loop calibrator with the power of a precision 1000 V, 440 mA True-RMS digital multimeter
• Includes 24 V loop power supply
• Features a very large dual display with enhanced two-level backlight brightness settings
• Includes 0% and 100% buttons to toggle between 4 and 20 mA sourcing for a quick span check
• Provides all standard DMM capabilities including frequency measurement to 20 kHz, Min/Max/Average/Hold/Relative modes, and diode test and continuity beeper
• Simultaneous displays mA and % of scale readings
• Provides 20 mA DC current source/loop calibrator/simulator
• Offers manual step (100%, 25%, Coarse, Fine) plus auto step and auto ramp
• Delivers 0.1% dc voltage accuracy and 0.05% dc current accuracy
• Provides 1200 ohm drive capability on mA source
• Offers HART mode setting with loop power and a built-in 250 ohm resistor
• Offers externally accessible fuses and batteries for easy replacement

Specifications:

• Current measurement Range 0-1 A AC or DC:
• Resolution: 1 mA
• Accuracy: 0.2% + 2 LSD (DC)
• Current measurement Range 0-30 mA
• Resolution: 0.001 mA
• Accuracy: 0.05% + 2 lSD
• Current sourcing:
• Range: 0-20 mA or 4-20 mA
• Resolution: 0.05% of span
• Drive capability: 24 V Compliance or 1200 Ω @ 20 mA
• Frequency: To 19.999 kHz, 0.005% + 1 LSD
• Continuity: Beeps for resistance < 100 Ω
• Voltage measurement:
• Range: 0-1000 V AC (true-rms) or DC
• Resolution: 0.1 mV to 1.0 V
• Accuracy: 0.1% Rdg + 1 LSD (VDC)
• Resistance measurement: To 40 MΩ, 0.2% + 1 LSD
• Diode test: 2.0 V shoes diode voltage drop
• Display current and % of span: Yes
• Auto Step, Auto Ramp: Yes
• Operating temperature: -20°C to 55°C
• Storage temperature: -40°C to 60°C
• Humidity (without condensation):
• 95% up to 30°C
• 75% up to 40°C
• 45% up to 50°C
• 35% up to 55°C
• Temperature coefficient: 0.05 x (specified accuracy) per °C (for temperatures < 18°C or > 28°C)
• Electrical safety: Designed in accordance with IEC 1010-1, ANSI/ISA S82.01-1994 and CAN/CSA C22.2 No 1010.1-92
• Overvoltage category:
• IEC 1010-1 CAT III 1000 V
• IEC 1010-1 CAT IV 600 V
• Maximum voltage: 1000 V RMS
• Batteries: 4 x AA alkaline batteries
• Battery life: 140 hours typical (measurement), 10 hours typical (sourcing 20 mA)
• Shock and vibration:
• Random, 2 g, 5-500 Hz
• 1 meter drop test
• Dimensions (L x W x H): 203mm x 100mm x 50mm
• Weight 0.61kg

Warranty:

• Three Years Warranty Covered By Fluke
