Fluke FLUKE-726/APAC/EDC (5131133) Precision Multifunction Process Calibrator

Description

The Fluke 726 is a precise and powerful, yet easy-to-use, field calibrator. It features broad workload coverage, calibration power, and unsurpassed accuracy needed by process professionals. It measures and sources almost all process parameters to calibrate almost anything. Use it to test sensors and valves, and to test and calibrate transmitters. The 726 interprets results without the help of a calculator and stores measurement data for later analysis.

Features:

• Precision multifunction, temp, frequency, voltage, and mA calibrator
• Calibrates thermocouples and RTD temperature instruments
• Stores up to eight calibration results in memory for analysis
• Built-in 24 V Loop Power Supply

Includes:

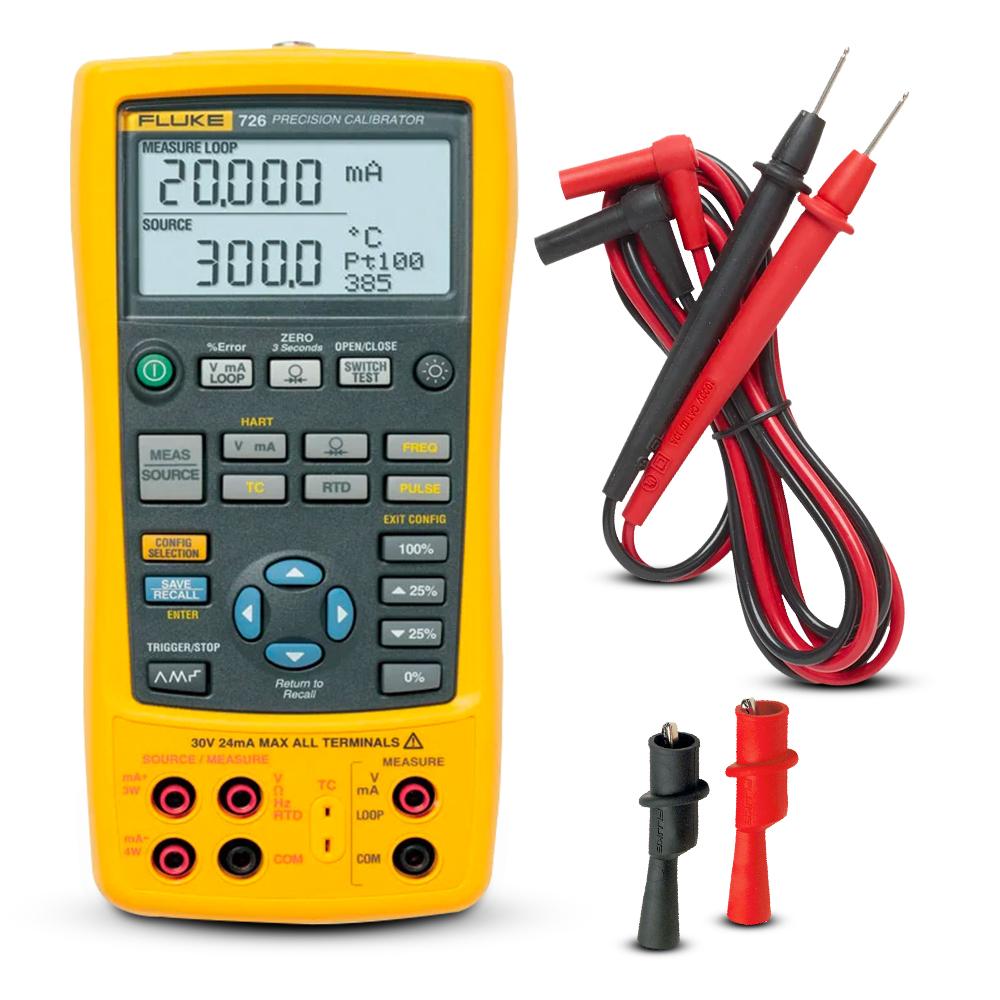

• 1 x Fluke 726 Precision Multifunction Process Calibrator
• 1 x Set AC72 Alligator Clips
• 1 x Pair Stackable Test Leads
• 1 x Pair TL75 Test Leads
• 1 x Quick Reference Guide
• NIST-Traceable Calibration Report & Data

Specifications:

• Measurement Accuracy:
  • Voltage DC
    • 30.000 V: 0.01% + 2 mV (Upper Display)
    • 20.000 V: 0.01% + 2 mV (Lower Display)
    • 90.00 mV: 0.01% + 10 μV
    • -10.00 mV to 75.00mV: 0.025% + 1 Count (Via TC Connector)
  • Current DC: 24.000 mA: 0.01% + 2 mA
  • Resistance: 0.0 to 4000.0Ω: ± 0.015%
  • Frequency:
    • 2.0 to 1000.0 CPM: 0.05% + 0.1 cpm
    • 1.0 to 1000.0 Hz: 0.05% + 0.1 Hz
    • 1.00 to 15.00 kHz: 0.05% + 0.01 kHz
    • Sensitivity: 1 V peak-to-peak-minimum
• Source Accuracy:
  • Voltage DC
    • 100.00 mV: 0.01% + 10 μV
    • 20.000 V: 0.01% + 2 mV
    • -10.00 mV to 75.00 mV: 0.025% + 1 Count (Via TC Connector)
  • Current DC:
    • 24.000 mA(source): 0.01% + 2 μA
    • 24.000 mA(simulate): 0.01% + 2 μA
  • Resistance: Range, Accuracy (Percent of reading + floot) & Excitation Current
    • 5 to 400 Ω, 0.015% + 0.1 Ω, 0.1 to 0.5 mA
    • 5 to 400 Ω, 0.015% + 0.05 Ω, 0.5 to 0.5 mA
    • 400 to 1500Ω, 0.015% + 0.05 Ω, 0.05 to 0.8 mA
    • 1500 to 4000Ω, 0.015% + 0.5 Ω, 0.05 to 0.4 mA
  • Frequency:
    • 2.0 to 1000.0 CPM: 0.05%
    • 1.0 to 1000.0 Hz: 0.05%
    • 1.00 to 10.0 kHz: 0.25%
    • 10.0 to 15.0 kHz: 0.5%
    • Waveform: 5V Peak-to-Peak Squarewave, -0.1V Offset
• Ramp functions:
  • Source functions: Voltage, Current, Resistance, Frequency, Temperature
  • Ramps: Slow ramp, Fast ramp, 25% Step-Ramp
• Loop power function:
  • Voltage: 24 V
  • Accuracy: 10%
  • Maximum current: 22 mA, Short Circuit Protected
• Step functions:
  • Source functions: Voltage, Current, Resistance, Frequency, Temperature
  • Steps: 25% of range, 100% of range
• Operating Temperature: -10ºC to 55ºC
• Storage Temperature: -20ºC to 71ºC
• Operating Altitude: 3000m
• Dimensions (L x W x H): 200mm x 96mm x 47mm
• Weight: 0.65kg

Warranty:

• 3 Years warranty covered by Fluke
