Description
Features:

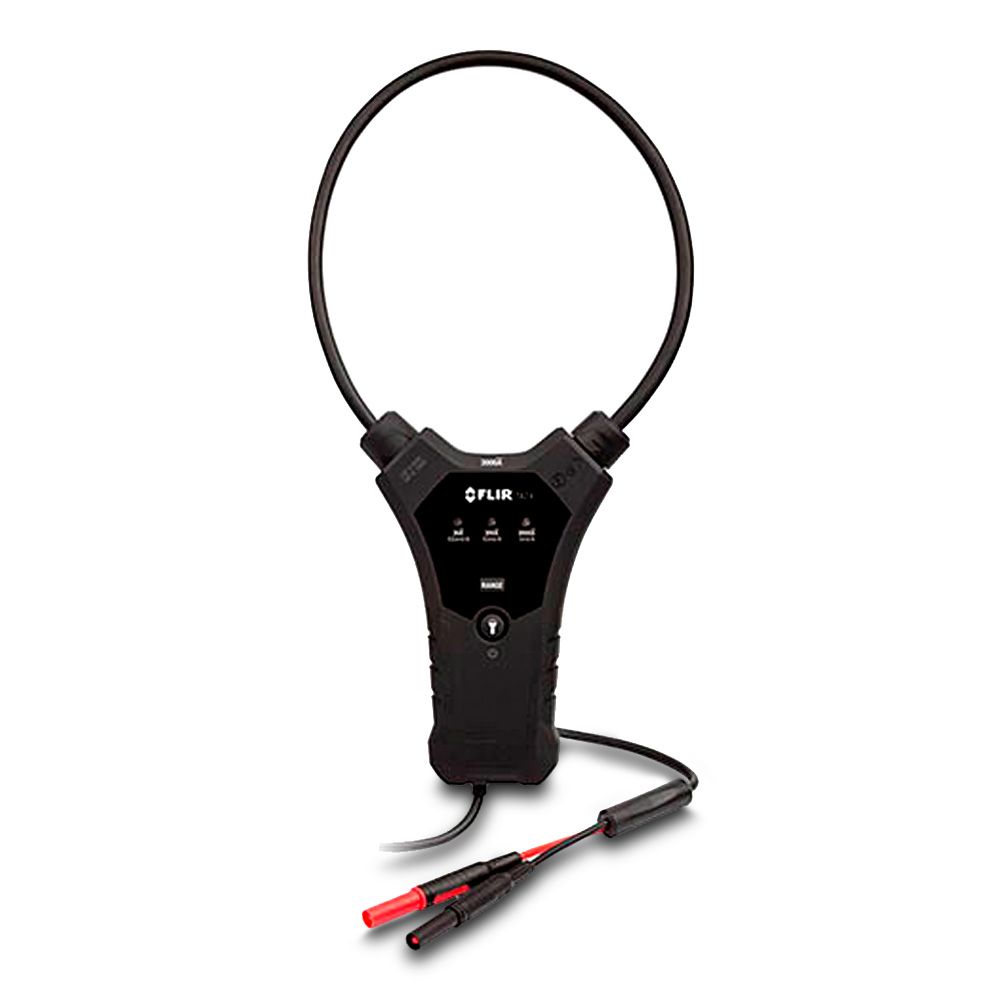

- Narrow 18-inch flexible coil clamp with locking mechanism allows easy current measurements in tight or awkward locations where traditional clamp meters can’t fit
- Switchable AC current ranges of 30A, 300A, and 3000A for versatile measurement applications, including multiple conductors and double-wrap requirements
- Standard banana plug connection with voltage output signal ensures compatibility with most digital multimeters (DMMs) and clamp meters, regardless of brand
- Ideal for measuring current in confined spaces, deep panels, cable bundles, and hard-to-reach conductors without disconnecting cables
- Adds flexible current measurement capability to existing meters without the need for a dedicated flexible clamp meter
- Designed to deliver accurate and reliable readings in challenging measurement environments
- Lightweight, flexible design simplifies setup and improves efficiency in the field
Specifications:
- Maxiumu AC Current: 3000A
- AC current ranges: 30.00A, 300.0A, 3000A
- Basic AC Current Accuracy (Full Scale): ± 3.0% + 5 digits
- Measurement Rate: 1.5 Samples per Second, Nominal
- AC Current Bandwidth: 45Hz – 500Hz (Sine Wave)
- Positional Error (Distance from Optimum): 1.4″ (35mm) ± 1.0%, 2.0″ (35mm) ± 1.5%, 2.4″ (35mm) ± 2.0%
- Worklight: 2 x White LEDs
- Safety Rating: CAT IV 600V, CAT III 1000V
- Standards: EN61010-1, EN61010-2-032, EN61326-1
