FLIR FLIR Si1-LD Industrial Acoustic Imaging Camera for Compressed Air Leak Detection

Description

The new FLIR Si1-LD offers improved detection and quantification capabilities in comparison with the existing FLIR Si124-LD Plus, along with a higher upper limit frequency range.

Compressed air systems typically lose 25–30% of their air to leaks, resulting in proportionally higher energy bills, costly unplanned production stoppages, shorter compressor operating life, the need to purchase extra compressor capacity, and increased maintenance expenses for the additional equipment.

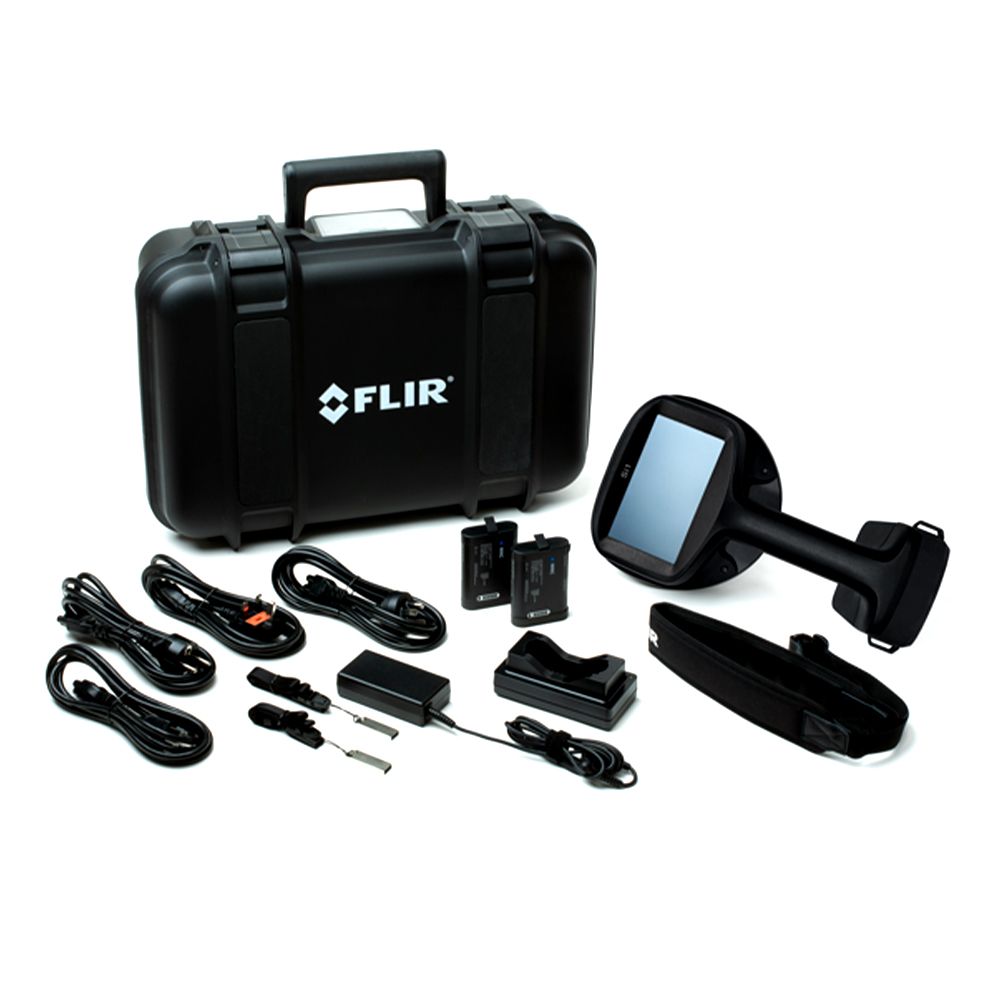

Includes:

• 1 x Camera
• 2 x Battery
• 1 x Battery charger
• 4 x Power cable
• 1 x Neck strap
• 1 x Hard transport case
• 1 x License card: FLIR Si-series Plugin for FLIR Thermal Studio, Perpetual license
• 1 x Printed documentation
• 1 x USB memory stick

Features:

• Automatically detects compressed air and vacuum leaks from up to 130 meters (427 feet) away
• Noise suppression technology ensures uninterrupted use in noisy industrial environments, improving accuracy and usability
• Band-pass filter enables manual tuning of the frequency range for precise inspections
• Lightweight design enables intuitive, single-handed operation, ideal for fast-paced inspections across large facilities
• Touch-screen interface captures high-resolution images with realtime quantifiable leak-rate and cost prediction for prioritizing repairs
• Seamless reporting options, including online analysis via FLIR Acoustic Viewer and offline reporting with FLIR Thermal Studio software

Applications:

• Leak detection in manufacturing and process industries
• Preventative maintenance and equipment optimization
• Energy efficiency and compliance

Specifications:

• Measurement & Analysis:
• Acoustic measurement: 96 low-noise MEMS microphones, real-time sound visualization
• Detection threshold:
  • 20 kHz: −5 dB
  • 35 kHz: 9 dB
  • 50 kHz: 15 dB
  • 80 kHz: 41 dB
  • 100 kHz: 56 dB
• Bandwidth: 2 kHz to 100 kHz
• Directional resolution: From 1° up to 0.125°
• Operating distance: From 0.3 m (1.0 ft) up to 130 m (427 ft)
• Auto distance: Automatic distance up to 5 m (16.45 ft)
• Leak localization and detection: Automatic leak recognition including estimated leak size and annual cost
• Leak rate detection threshold:
  • 0.5 m: 0.004 l/min
  • 2.5 m: 0.010 l/min
  • 6.0 m: 0.017 l/min
• Autofilter, automatic frequency selection: No
• Band-pass filter: Yes
• Supported gases Compressed air Mechanical mode: No
• Imaging & Optical:
• Digital camera: 12 MP colour
• Camera field of view: 65° diagonal
• Video frame rate:
  • Camera: 60 fps
  • Acoustic image: 30 fps
  • Screen: 70 fps
• Zoom: 8x Digital zoom
• Video image resolution: 1280 × 720
• User Interface:
• Display: Size: 5 in. 1280 × 720, Resistive touch screen, TFT LCD, MIPI DSI
• Integrated flashlight: LEDs, two modes: ON / OFF
• Analysis & Reporting:
• Online: FLIR Acoustic Viewer (cloud service) https://acousticviewer.flir.com
  Offline FLIR Thermal Studio (desktop software)
• Communication & Data Storage:
• Data transfer:
  • Wi-Fi 2.4 GHz and 5 GHz IEEE 802.11.b/g/n/ac wireless LAN
  • USB memory stick
• Camera software update:
  • Automatic over Wi-Fi
  • USB via computer
• Still image format: .nlz and .jpg
• Video recording & format :Up to 5 minutes (.nlz format)
• Storage:
  • Internal: 32 GB (SD card)
  • External 8 GB (USB)
  • Cloud storage capacity is unlimited
• Image annotations: Image tags and comments
• Power:
• Camera power input:
  • Nominal input voltage: 12 V DC
  • Max input: 17 V DC, 3.3 A (limited)
• Battery:
  • Li-ion rechargeable battery pack (RRC 2054):14.4 V DC
  • 3.45 Ah, 49.68 Wh
  • Usage: Up to 2.5 h
  • Charge time: approx. 2 h
  • Max output: 16.8 V DC, 5 A
• Battery charger:
  • Input: 19 V to 26 V DC, 2.8 A
  • Max output: 17.4 V DC, 4.8 A
• Environmental Data:
• Operating temperature range: −10°C to 50°C (14°F to 122°F)
• Storage temperature range:
  • Max: −20°C to 50°C (−4°F to 122°F)
  • Recommended: −20°C to 25°C (−4°F to 77°F)
• Relative humidity: 0% to 90% recommended
• EMC: CFR47 FCC Part 15 Subpart B
• Radio: CFR47 FCC Part 15 Subpart C/E, ETSI EN 301 489-1/-17, ETSI EN 300 328, ETSI EN 301 893
• Ingress Protection: IP54
• Safety: IEC 62368-1
• Physical Data:
• Camera size: 184 mm x 276 mm x 167 mm (7 in x 11 in x 6 in)
• Camera weight: ~ 1.2 kg
• Battery size: 85 mm × 77 mm (RRC2504)
• Battery weight: ~ 0.25 kg
• Total weight (camera + battery): ~ 1.45 kg

Warranty:

• Visit the Flir Website For Warranty & Servcie
