FLIR EV45-T2 EV Charger Test Adapter with Type 2 Plug and Type 1 Converter

Description

The FLIR EV45-T2 EV charger test adapter is equipped with a built-in IEC 62196-2 Type 2 plug, making it ideal for Type 2 charging stations or AC wall connectors. Designed for Level 1 and Level 2 electric vehicle AC charging stations (EVSEs), it is perfectly suited for both residential and commercial use. Maintain EV charging station safety by checking Protective Earth (PE) and electrical wiring, Test charge current interrupt device (CCID) to ensure electrical safety, Verify EV Charger maximum current output, Output charging voltages and frequency for further performance and safety checks, with the option to use the FLIR DM286 IGM multimeter for a comprehensive kit solution. The Bluetooth® FLIR METERLiNK® technology in the DM286 allows you to connect wirelessly to the METERLiNK® app on mobile devices, enabling instantaneous documentation, reporting, and sharing of results.

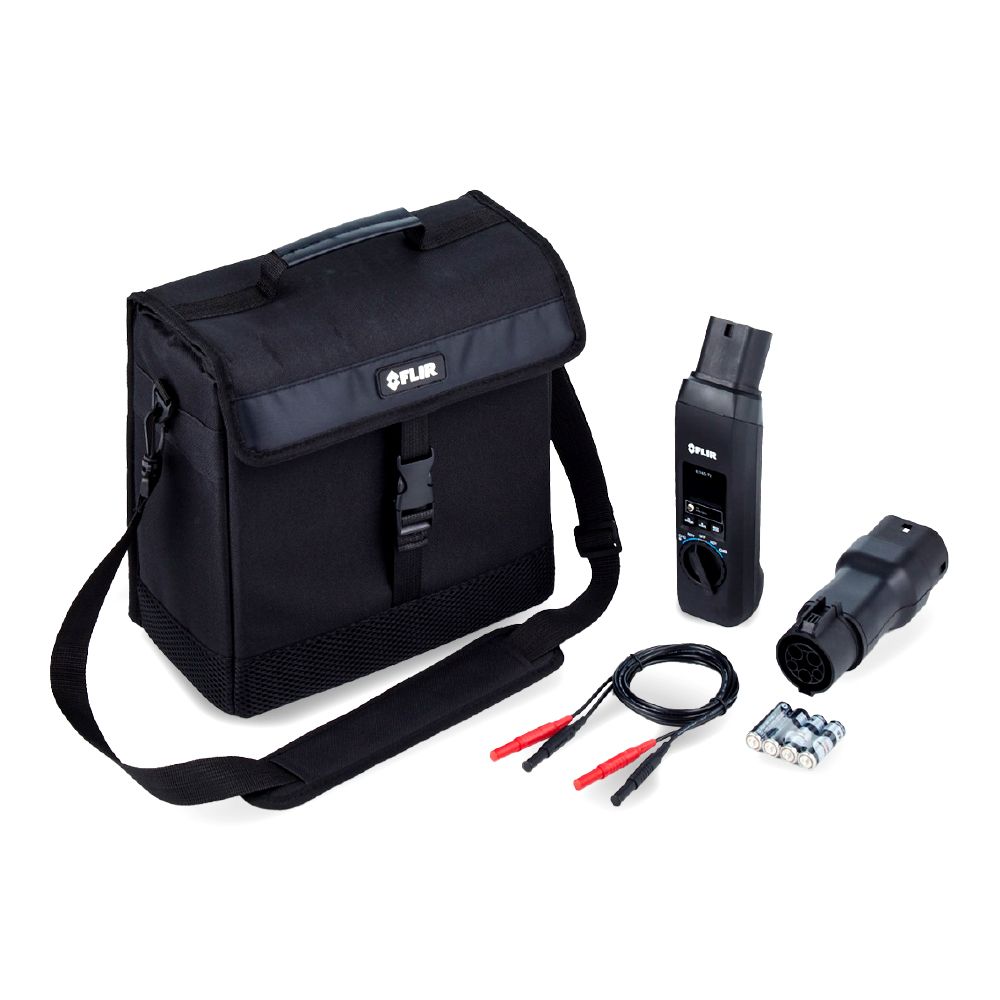

Includes:

• 1 x Converter for Type 1
• 1 x Carrying Pouch
• 1 x Test Leads
• 4 × AA Batteries
• 1 x User Manual

Features:

• Ensures EV charging station safety by verifying Protective Earth (PE) and electrical wiring integrity
• Tests residual current device (RCD)
• Indicates the maximum current output of EV chargers
• Designed for Type 2 and compatible with Type 1 connectors
• Measures charging voltage and frequency when used with an optional FLIR digital multimeter
• Complies with CAT II 300 V and IEC 61851-1 EV safety standards

Applications:

• Providing safe and reliable EV charging stations
• Installing and maintaining public and private EV chargers
• Diagnosing and troubleshooting EVSEs

Specifications:

• Electrical Measurement:
  • PE pre-test: Pass / Fault (>50 V AC/DC between PE conductor and touch sensor)
  • PP State indication: Open, 13 A, 20 A, 32 A, 63 A
  • CP State simulation: A (Disconnected) , B (Cconnected) , C (Charging), D (Charging w/ ventilation), E (Error)
  • Voltage phase indication: L1, L2, L3
  • CP Error (E state) simulation: Pass / Fault (CP signal short-circuited to PE)
  • PE Error simulation: Pass / Fault (interruption of PE conductor)
  • RCD/CCID Trip test: Pass / Fault (Test RCD/CCID activation once tripped)
• Outputs (For Test Purpose Only):
  • Measuring terminals L1, L2, L3, PE, N: Max. 250 V (Single Phase) / 430 V (3 phase), 50 / 60 Hz, CAT II 300 V, Max. 10 A
• Outputs (Optional Meters):
  • Connect to DMM (DM286): CP State C / D for AC Voltage with Hz measurement
  • Connect to insulation tester (IM75-2): CP State B for EV cable Insulation Test
• Power System:
  • Battery: 4 × AA Alkaline batteries
  • Battery life: Approx. 100 hours, with alkaline batteries
• Certifications:
  • Certifications: ETL, CE, RCM
  • Safety standards: IEC 61010-1 CAT II-300 V
  • EMC standards: EN61326-1
• Environmental Data:
  • Operating ambient temperatures and relative humidity (RH):
    • −10°C to 30°C (14°F to 86°F), <85% RH
    • 30°C to 40°C (86°F to 104°F), <75% RH
    • 40°C to 50°C (104°F to 122°F), <45% RH
  • Storage temperature and RH: −20°C to 60°C (−4°F to 140°F), 0 to 80% RH (without batteries)
  • Operating altitude: 2000 m (6560 ft)
  • Pollution degree: 2
• Type 2 connector (Built-in): IEC 62196-2 Type 2 socket
• Accessory adaptor: IEC 62196-2 Type 2 to SAE J1772 Type 1
• Category rating: CAT II-300 V
• Dimensions (L x W x H): 237mm x 65mm x 56mm
• Weight: 0.600kg

Warranty:

• Limited 3-Year Warranty Covered by FLIR
