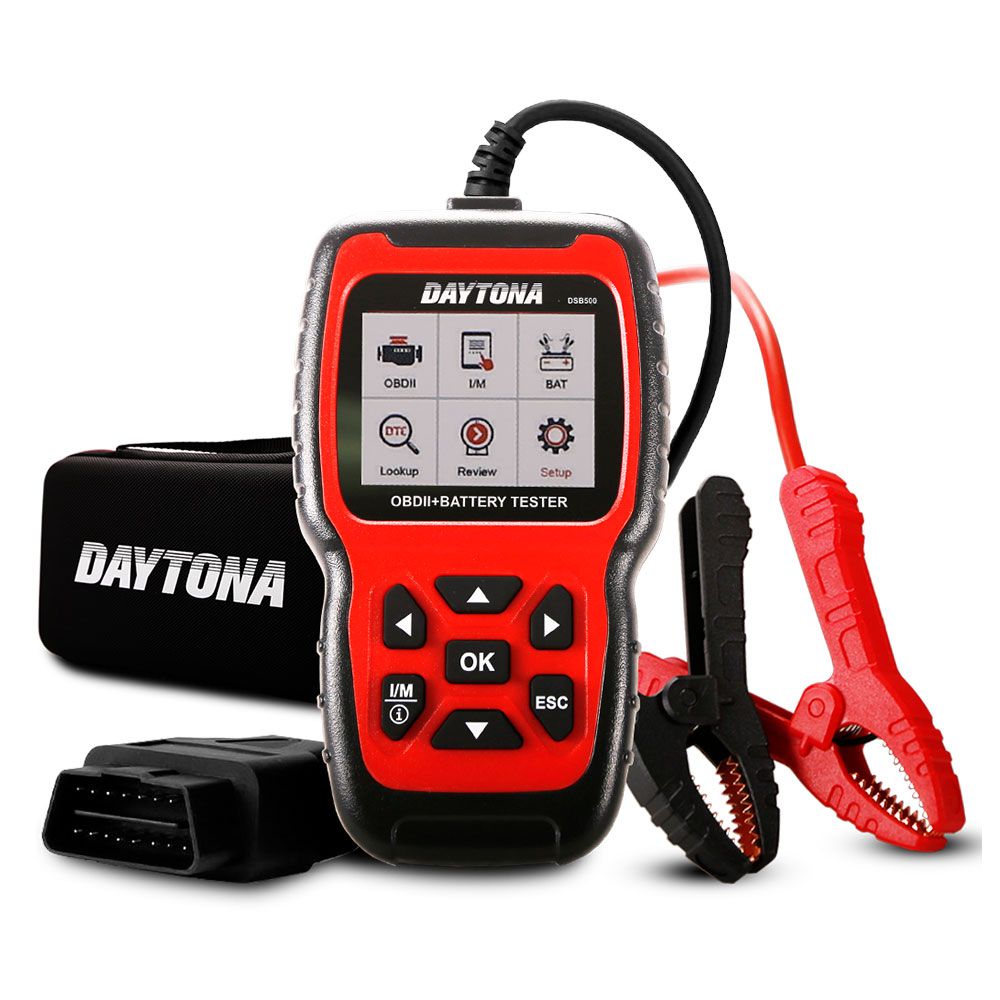

Daytona DSB500 Auto Diagnostic System Scanner and Battery Tester

Description

Support 12V100-2000CCA Lead-acid batteries. Test multi gasoline or diesel types, including car, truck, motorcycle, ATV, boat, yacht, even golf cart, general equipment batteries. Works on most 2000 and newer OBDII compliant US, European and Asian vehicles.

Includes:

• 1 x Diagnostic Scanner & Battery Tester
• 1 x USB cable
• 1 x Alligator Clamp Cable

Features:

• Battery test, cranking test, charging test and review data all in one
• 2.8″ (320x240px) LCD display
• Support 12V 100-2000CCA Lead-acid Batteries
• Reverse connection protection
• Polatoty reverse connection protection ensuring battery won’t be damaged
• Works on most 2000 and newer OBDII compliant US, European and Asian vehicles
• Optional multilingual menu interface
• Test multi gasoline or diesel types, including car, truck, motorcycle, ATV, boat, yacht, even golf cart, general equipment batteries

Compliant with:

• Works on most 2000 and newer OBDII compliant US, European and Asian vehicles.
• Support 12V100-2000CCA Lead-acid batteries

Specifications:

• Display: 2.8″ (320x240px) TFT Color Display
• Operating Voltage (OBDII Connection Port): DC 8-18V
• Operating Temperature: 0 to 60⁰C 32 to 140⁰F
• Storage Temperature: -20 to 70⁰C -4 to 158⁰F
• External Power: 8 to 18V Power Provided via Vehicle Battery
• Dimensions (L x W x H): 155mm x 98mm x 33mm

Battery Type & Measuring Standard:

• CCA: 100-2000
• BCI: 100-2000
• CA: 100-2000
• MCA: 100-2000
• JIS: 26A17-N200Z
• DIN: 100-1400
• EN: 100-2000
• SAE: 100-2000
• IEC: 100-1400
• GB: 300-220Ah

OBDII Functions

• Read Codes
• Erase Codes
• Data Stream
• Onboarding Monitoring
• Vehicle Information
• Freeze Frame Data
• Test or Component
• I/M readiness Status
• CO² Sensor Test
