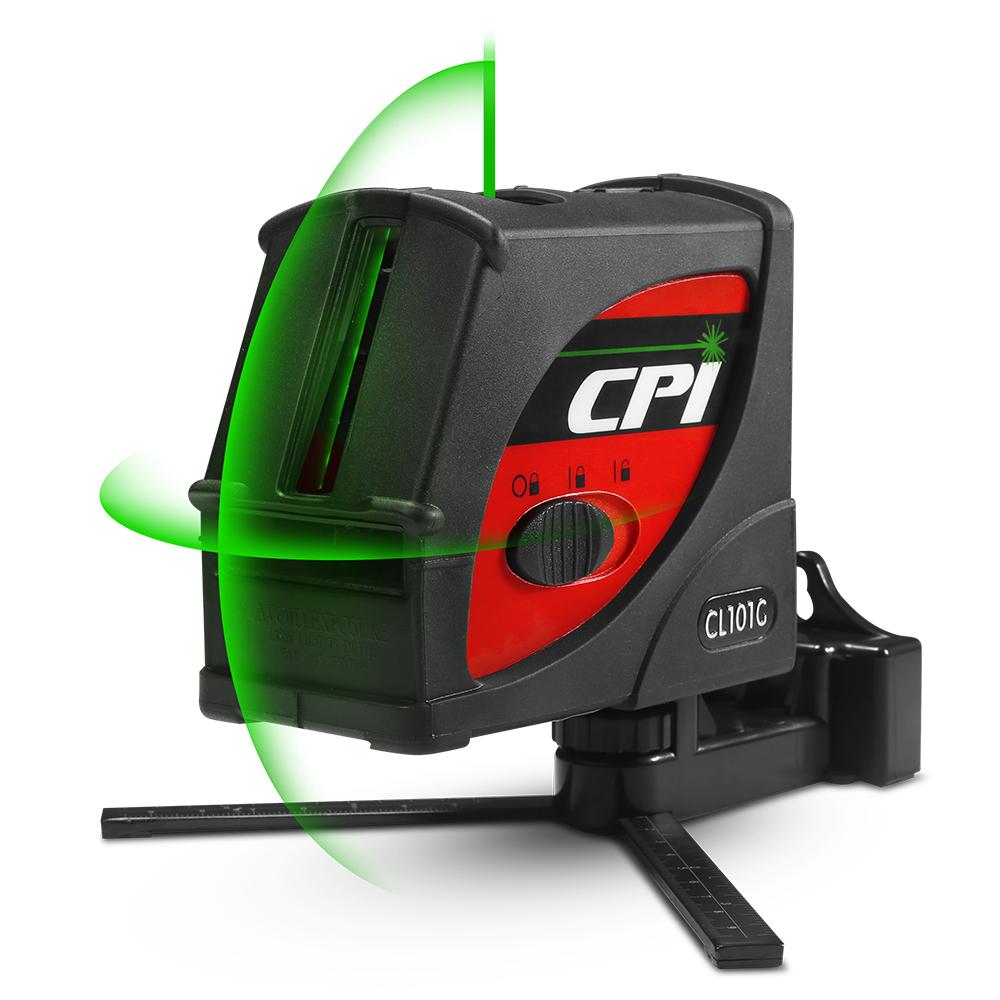

CPI CL101G Industrial Outdoor & Indoor Green Beam Multi Cross Line & Plumb Laser Level Kit

Description

The CL101G Industrial Outdoor & Indoor Green Beam Multi Cross Line & Plumb Laser Level Kit is perfect for a variety of levelling applications, including light placement, door fittings, window fittings and decking.

Includes:

• Instrument (CPI101G Laser)
• Universal mount
• Square
• Strap
• 4 x AA rechargeable batteries
• Battery charger
• Carry bag
• User guide

Features:

• Pocket size
• Super strong shock resistance for heavy duty daily use
• Super high visibility beams
• 140º vertical and 130º horizontal fan angles give you amazing line lengths for limitless layout versatility
• Heavy-duty compensator eliminates error by quickly self-leveling the unit – Settling time is 3 seconds only
• Precision, vertical and horizontal lines operate simultaneously or independent of each other for countless level and plumb applications
• One-button Operation: Horizontal line, vertical line, laser cross, CYCLE!
• Easy to change between indoor mode and outdoor mode
• When self-leveling mode is not necessary, lock lines in place allowing laser lines setting at any angle
• Auto-off mode and continuous working mode are optional
• Universal Mount: Strong magnets, 1/4″ and 5/8″ tripod mounts and strap allow for attachment of the unit to a variety of different surfaces including metal studs, wooden beams, wall and tripods.
• Automatic Out of Leveling Sensing: Sensor triggers the beams and audible alarm to sound if the unit is moved out of its ±5 self-leveling range. This eliminates tool status checks and costly errors, saving time and money

Applications:

• Carpentry: Level and set cabinets and counter tops. Install trim and millwork
• Stair layout; level and plumb decks; plumb framing and partition walls; plumb window and door frames.
• Concrete: set forms and footings.
• Electrical: Level electrical outlets; transfer lighting layout from floor to ceiling.
• Plumbing: Layout piping, sewer lines, drainage and feed lines; transfer sprinkler system layout from floor to ceiling.

Specifications:

• Accuracy: ±3mm @ 10m
• Plumb beams: ±1.5mm @ 5m
• Self-leveling range: ±5º
• Operating Range:
• Indoor mode: Up to 30m
• Outdoor Mode: Up to 50m (with laser detector)
• Fan Angle:
• Vertical: 140º
• Horizontal: 130º
• Out-of-level Indication: Laser lines off and audible alarm
• Pendulum Lock/Off: Protects pendulum during transportation and storage for added durability.
• Unit Dimensions (L x W x H): 110mm x 57mm x 97mm
• Operating Temperature: 10º – 50º
• Laser Diode: Class IIIA, 510-535nm
• Power Supply: 4 x AA rechargeable batteries
• Operating time: 6 hours continuous use (2 lines on)
• Weight: 1.2kg

Warranty:

• 12 Months Warranty Covered By CPI
