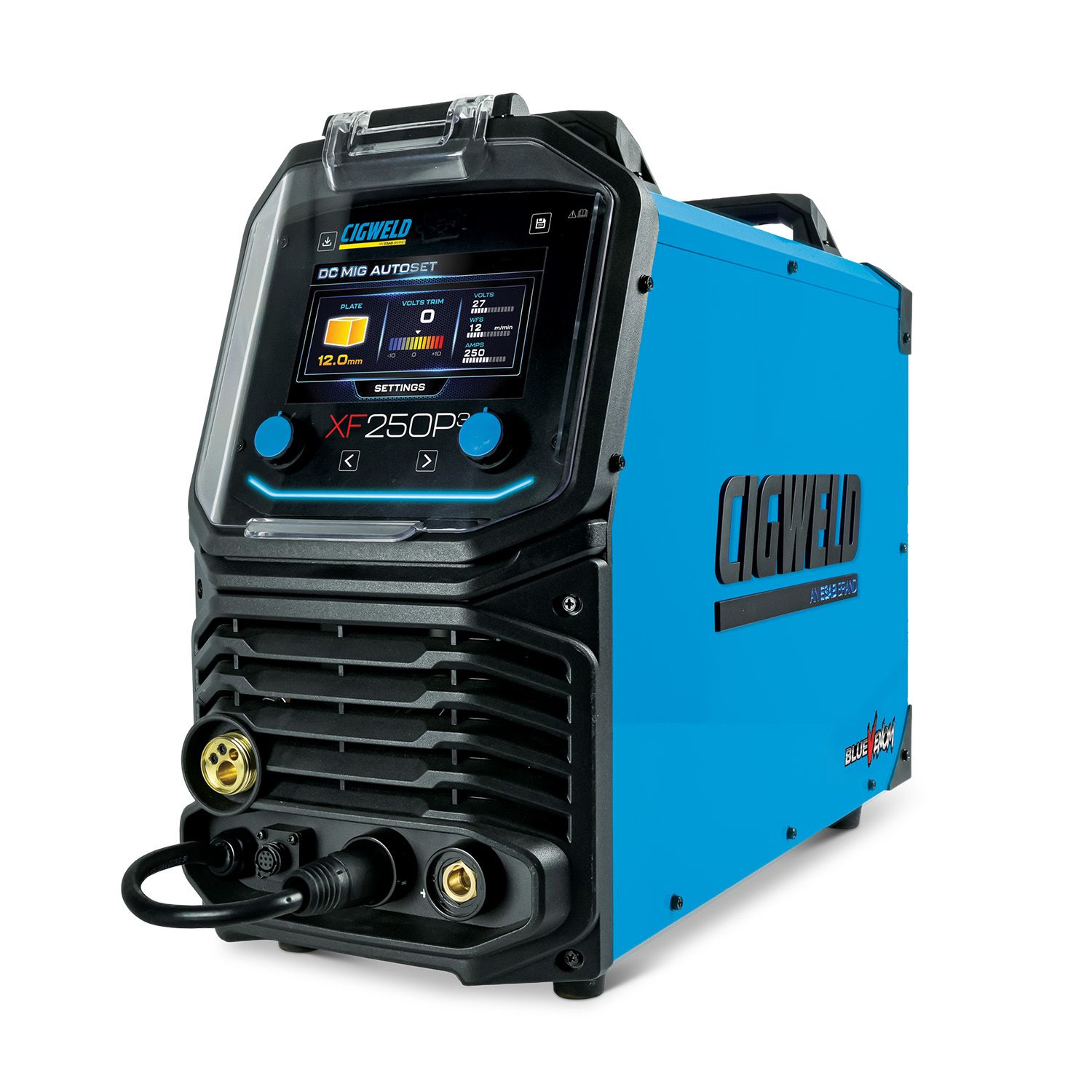

Cigweld XF250P3 (W1400250) BlueVenom 250A MIG/Stick/TIG Multi-Process Pulse Welder

Description

The BlueVenom XF250P3 – the Big Brother of the market changing BlueVenom XF200P3 is a high-performance 250A multi-process powerhouse welding inverter spec’d up to deliver on your demands! Ready to rock out of the box, this beast packs advanced features designed to meet the demands of both serious enthusiasts and seasoned professionals. Equipped with three pulse modes: Single & Double Pulse MIG, Stick Pulse, and TIG Pulse, delivering precision and versatility across every application. Aluminium Pulse MIG Welding delivers excellent thin metal welding results that can be customized to allow adjustable “ripple spacing” (dimes) to achieve MIG-Welds that look like TIG-Welds! Weld most metals including Mild Steel, Stainless Steel, Aluminium and Bronze with using 100mm, 200mm or 300mm (15kg) spools. Running off a 15A input plug, this single phase 230V Multi-process workhorse also boasts Power Factor Correction (PFC) providing greater power efficiencies and more stable operation especially when using extension leads.

Includes:

• 1 x BlueVenom XF250P3 Power Source
• 1 x 3m NEXARC DGX36 MIG Gun with 4-Button Control
• 1 x 200A Twist lock Electrode Holder with 3m Lead
• 1 x2m Quick Connect Gas Hose
• 1 x 300A Earth Clamp with 3m Lead
• 1 x BlueJet Regulator/Flowmeter
• 2 x Feedrolls:
  • 0.8/0.9mm V-Groove (Fitted)
  • 0.8/0.9mm Knurled
  • 1.0/1.2mm U-Groove Mild Steel Liner (Fitted)
  • Nylon Liner, Inlet/Outlet Guide
• 1 x Operating Manual

Features:

• High-performance 250A multi-process welding inverter designed for demanding professional applications
• Three advanced pulse modes (Single & Double Pulse MIG, Stick Pulse, and TIG Pulse) deliver superior precision across all jobs
• Customizable Aluminium Pulse MIG with adjustable “ripple spacing” achieves TIG-quality aesthetics on thin metals
• Effortlessly welds Mild Steel, Stainless Steel, Aluminium, and Bronze
• Accommodates a wide range of spool sizes including 100mm, 200mm, and 300mm (15kg)
• Robust 4-roll (cogged) all-driven wire drive system ensures smooth and consistent wire feedability
• Fully compatible with Push-Pull Guns, Spool Guns, TIG foot controls, and Dial Remote TIG torches
• Intuitive 7-inch full-color LCD screen features 60 memory provisions to easily save and load job parameters on the fly
• Advanced weld customization includes Voltage Trim, Adjustable Burnback, and Opti-Start Technology for flawless arc ignition every time
• Conveniently operates on a standard single-phase 230V 15A input plug
• Integrated Power Factor Correction (PFC) maximizes efficiency and ensures stable operation, even on long extension leads

Specifications:

• Power Supply (Voltage): Single Phase 15A Plug 230V
• Nominal Supply Frequency: 50/60Hz
• Supply Lead & Plug: 15 Amp
• Minimum Generator Required: 10.5kVA (0.8 Power Factor at Max Amps)
• Amperage Range:
  • MIG: 30A – 250A
  • TIG: 10A – 250A
  • STICK: 30A – 250A
• Duty Cycles:
  • MIG Duty Cycle @ 40°: 250A @ 18%, 26.5V
  • TIG Duty Cycle @ 40° 250A @ 25%, 20.0V
  • STICK Duty Cycle @ 40° 205A @ 25%, 28.2V
• Voltage Reduction Device VRD: Yes on Stick Mode (<35V)
• Certification AS/NZS :   AS 60974.1:2020
• Protection Class: IP23S
• Dimensions (L x W x H): 620mm x 260mm x 495mm
• Weight: 25.5kg

Warranty:

• 3 Year Warranty covered by Cigweld
