Description

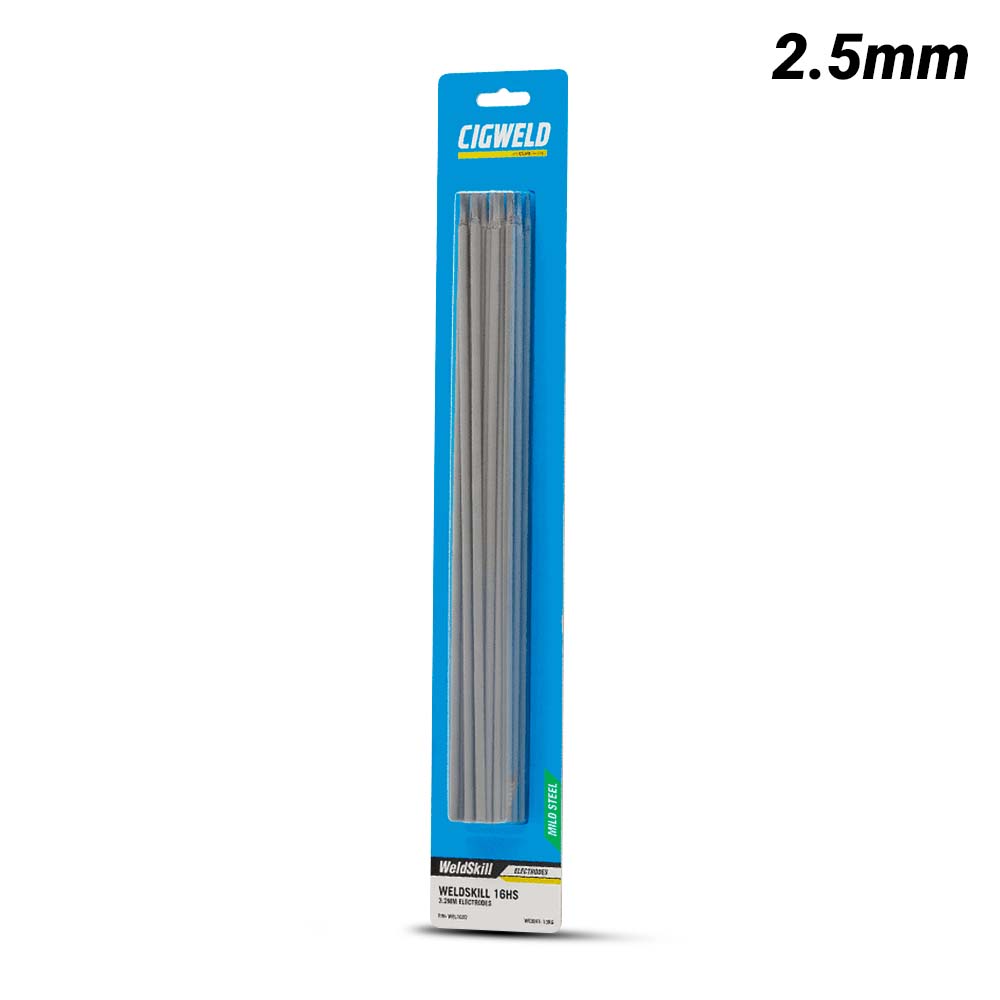

WELDSKILL 16HS is a basic, hydrogen controlled electrode that deposits weld metal in the 550MPa class. It gives excellent operator appeal in all welding positions, except vertical-down and exhibits a smooth, penetrating arc with excellent bead appearance and shape. The full covering slag is easy to control and remove. WELDSKILL 16HS is a versatile hydrogen controlled electrode, giving excellent all round arc performance and reliable impact toughness to -30°C.
WELDSKILL 16HS is designed for fillet and butt welding jobs where “hydrogen control” is required and the emphasis is on operator appeal. It is also recommended for more critical applications where low temperature impact toughness to -30°C is required.
Features:
- Fully Basic Hydrogen Controlled E7016 Type Electrode.
- Excellent Operator Appeal in All Positions.
- Ideal for Fill and Capping Passes.
- Excellent Impact Toughness to -30°C.
Suitable For:
- Pressure Vessel Fabrication
- Bridge and Ship Building
- Equipment Repair
- Maintenance Work
Specifications:
- Diameter: 2.5mm
- Current Range:
- Min: 90Amps
- Max: 130Amps
- Yield Stress: 480MPa
- Elongation: 25%
- CVN Impact Values:
- 125J av @ -20ºC
- 100J av @ -30ºC
