Description

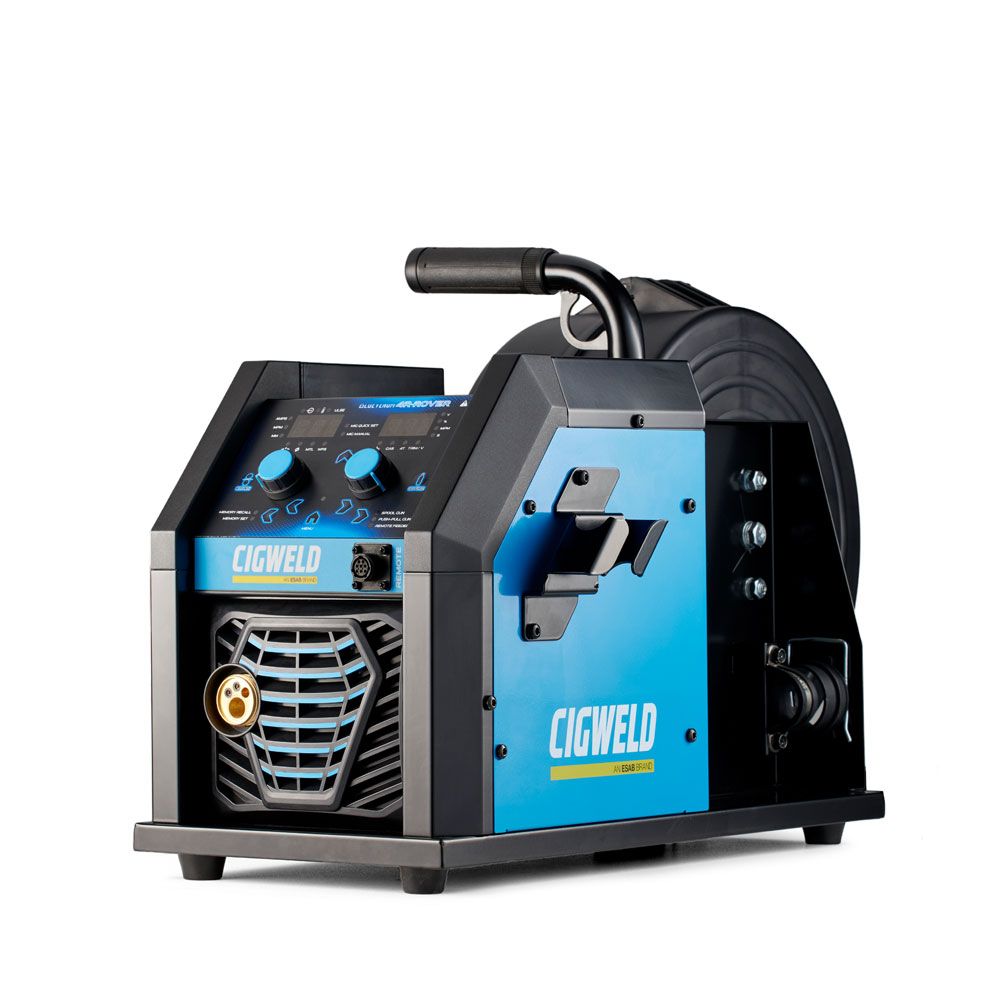

The new BlueVenom 4R-ROVER Digital Wire Feeder has been engineered to be as compact a 300mm spool feeder can be. With a low line carry handle the 4R-ROVER can fit in the most tight and constrained spaces!
Simply Plug n’ Weld with the 4 Roll wire drive specifically designed to pair up with the all new BlueVenom XF353. With the XF353 you can deliver awesome arc characteristics in the most popular processes of, MIG – QuickSet & Manual modes, Gas & Gasless operation and Single & Double Pulse MIG with the optional PulseMate.
Includes:
- BlueVenom 4R-ROVER Wire Feeder Unit
- 8m Interconnection Lead
- Feed Rolls: O.9/1.2mm V Groove (fitted)
- Operating Manual
Features:
- 4x Roll Wire Drive system with 1 central pressure arm
- Suits 200/300mm Wire Diameter Spools with included 200mm spool adapter
- Covered MIG wire enclosure to protect from dust and moisture
- MIG Gun holder
- Low Line Carry Handle for constrained spaces
- Hanging bracket for safe gantry & boom setups and convenient maneuverability
- Locking brackets to XF353 to avoid wirefeeder sliding
- Plate Thickness Selection
- 10x Memory locations for quick weld setup:
- 5 for MIG Quickset and 5 for MIG Manual mode
- MIG Crater Fill function in 2T & 4T (just double tap)
- MIG Side door wire installation, side loader
- MIG Anti de-spooling safety feature
- MIG PulseMat, Spool Gun & Push-Pull Gun Compatible
Specifications:
- Wire Feeder Motor Voltage:24 VDC
- MIG (GMAW) Welding Output, 40°C, 10 min: 350A @ 60% | 271A @ 100%
- Wire Feed Speed:
- Min. 2.0 MPM
- Max. 18 MPM
- Interconnection Plug: 10 Pin
- Dimensions (L x W x H): 643mm x 303mm x 418mm
- Weight: 14.5kg
Warranty:
- 3-Year conditional warranty + 6 months extended warranty provided by Cigweld.
