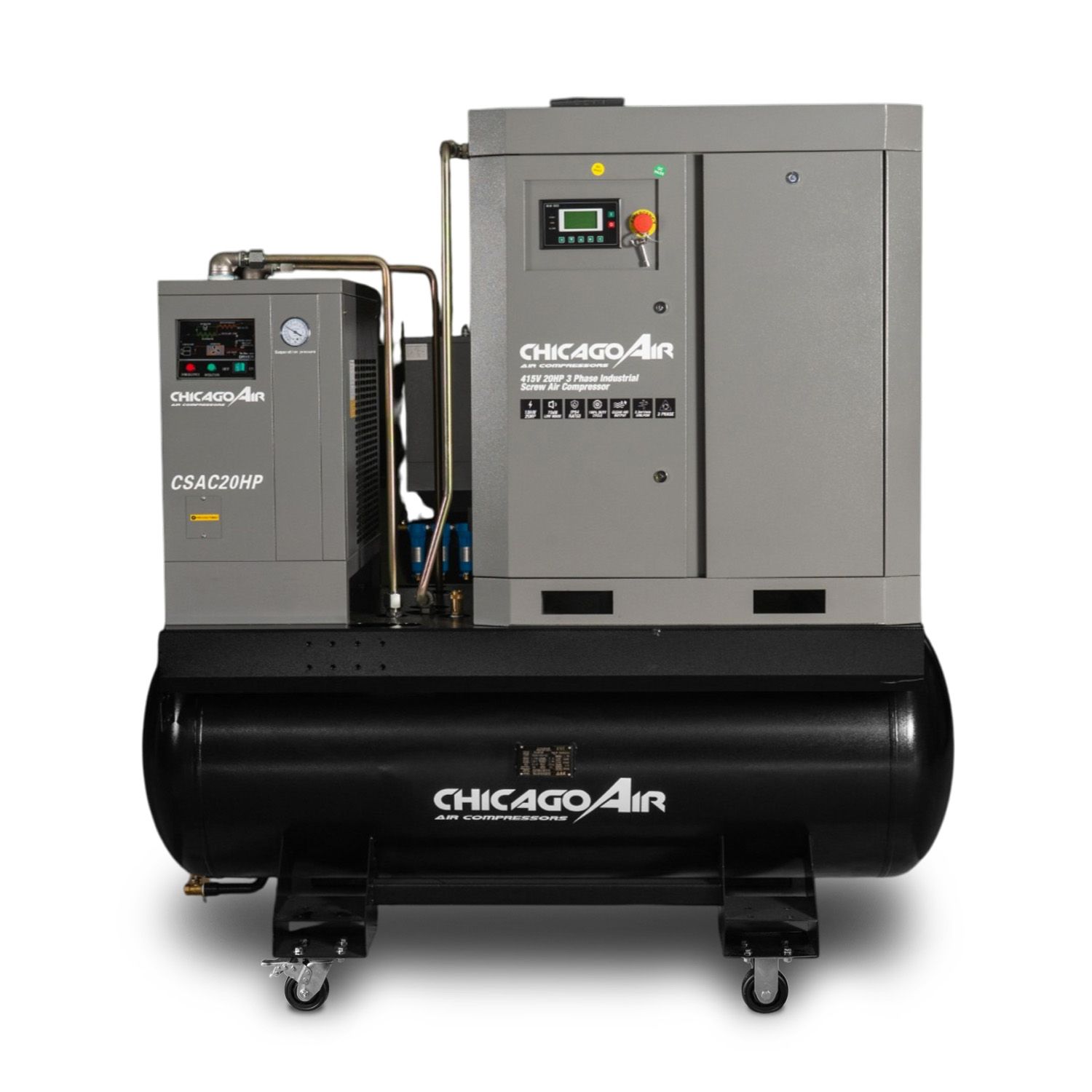

[Pre-Order] Chicago Air CSAC20HP 415V 20HP 3 Phase Industrial Screw Air Compressor

Description

The Chicago Air CSAC15HP 15kW Industrial Screw Air Compressor is built for reliable, continuous-duty performance in demanding industrial and workshop environments. Delivering a strong 2.3 m³/min airflow at 0.8 MPa, it provides stable compressed air to run multiple tools simultaneously without pressure drops. Its high-efficiency 15kW motor with star-delta starting ensures smooth operation and reduced startup load, while the advanced air cooling system maintains optimal working temperatures for long-term reliability.

With low noise output (72 dB), IP54 motor protection, and a durable belt-driven design, this compressor is engineered for tough Australian conditions ranging from -5°C to +45°C. Producing clean air with ≤3 ppm oil carryover, it’s suitable for both general industrial use and precision applications where air quality matters. Compact in footprint but heavy-duty in build, it’s designed for workshops that need dependable performance and long service life.

Features:

• 15kW Industrial Motor Power: High-output performance for demanding workshop and industrial use
• Continuous Duty Screw Compressor: Designed for reliable 24/7 operation with stable airflow
• 2.3 m³/min Airflow @ 0.8 MPa: Supports multiple air tools with consistent pressure
• Star-Delta Soft Start System: Reduces electrical load and improves startup efficiency
• Low Noise Operation (72 dB): Suitable for indoor and shared work environments
• Advanced Air Cooling System: Maintains stable operating temperatures for improved lifespan
• Clean Air Output (≤3 ppm Oil Carryover): Delivers high-quality air for precision applications
• IP54 Rated Motor Protection: Resistant to dust and water ingress for harsh environments
• Wide Operating Range (-5°C to +45°C): Built for demanding Australian conditions
• Heavy-Duty Belt Drive System: Reliable transmission designed for long service life
• Compact Industrial Design: Space-saving footprint for easy workshop installation

Specifications:

• Electric Motor:
  • Power: 15KW
  • Speed: 2930RPM
  • Starting Method: Star-Delta Start
  • Voltage: 415V
  • Frequency: 50Hz
  • Protection Level: IP54
  • Class: F Classs
• Fan:
  • Power: 0.25kW
  • Voltage: 415V
  • Frequencey: 50Hz
  • Speed: 1440rpm
  • Air Volume: 2100 m³/h
• Nominal Volume Flow: 2.3m³/min
• Rated exhaust pressure: 0.8MPa
• Ambient Temperature: -5~+45ºC
• Cooling Method: Air Cooling
• Exhuast Temperature: ≤Ambient temperature+15ºC
• Lubricating Oil Quantity: 10L
• Transmission Mode: Belt Type
• Gas Volume Adjustment Method: Add & Uninstall
• Oil Content in Gas: ≤3 ppm
• Noise: 72±2 dB(A)
• Safety Valve Set Pressure: Rated working pressure x 1.1 MPa
• Outlet Pipe Diameter: G 3/4″
• Dimensions (L x W x H): 940mm x 800mm x 1075mm
• Weight: 305kg

Warranty:

• 12 Month Warranty Covered by Chicago Air
