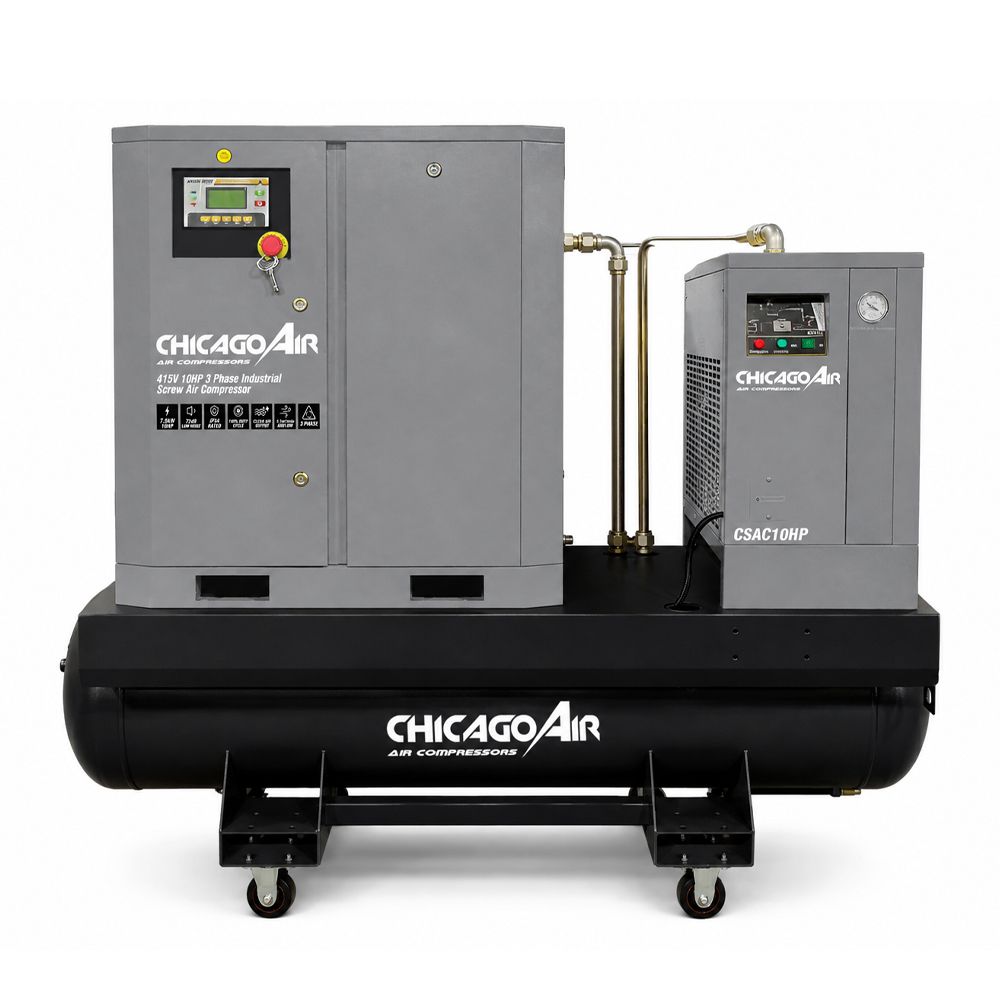

[Pre-Order] Chicago Air CSAC10HP 415V 10HP 3 Phase Industrial Screw Air Compressor

Description

The Chicago Air CSAC10HP 7.5kW 10HP Industrial Screw Air Compressor is built for dependable, continuous operation in demanding industrial and workshop environments. Designed to deliver a steady 1.1 m³/min airflow at 0.8 MPa, it provides consistent pressure for running multiple air tools without interruption. Its low-noise 72 dB operation makes it suitable for indoor use, helping create a more comfortable working environment.

Engineered for efficiency, the high-performance motor optimises energy consumption while maintaining powerful output. The advanced air cooling system regulates internal temperatures to prevent overheating, extending component life and reducing downtime. With ≤3 ppm oil carryover, it produces clean, high-quality compressed air ideal for precision equipment and sensitive applications.

Built tough with an IP54-rated motor and robust construction, this compressor is made to handle harsh Australian conditions, operating reliably in temperatures from -5°C to +45°C. Its compact, space-saving design allows for easy installation in workshops where floor space is limited, making it a practical and efficient solution for professional use.

Features:

• Powerful 7.5kW Industrial Performance: Delivers consistent high-output air supply for demanding workshop and industrial applications
• Continuous Duty Screw Compressor Design: Ensures smooth, reliable operation without pressure drops or interruptions
• High Airflow Output: Produces 1.1 m³/min at 0.8 MPa, ideal for powering multiple air tools simultaneously
• Low Noise Operation (72 dB): Quieter performance makes it suitable for indoor environments and reduces operator fatigue
• Energy-Efficient Motor: Optimised power usage helps lower operating costs while maintaining strong performance
• Advanced Air Cooling System: Maintains optimal operating temperature, improving efficiency and extending service life
• Clean Air Output (≤ 3 ppm Oil Carryover): Provides high-quality compressed air for precision tools and sensitive equipment
• Durable IP54-Rated Motor: Protected against dust and water splashes for reliable operation in tough environments
• Wide Operating Temperature Range: Performs consistently in conditions from -5°C to +45°C
• Compact & Space-Saving Design: Easy to install in workshops with limited space without sacrificing performance

Specifications:

• Electric Motor:
  • Power: 7.5KW
  • Speed: 2930RPM
  • Starting Method: Direct Start
  • Voltage: 415V
  • Frequency: 50Hz
  • Protection Leve: IP54
  • Class: F Classs
• Fan:
  • Power: 0.12kW
  • Voltage: 415V
  • Frequencey: 50Hz
  • Speed: 1440rpm
  • Air Volume: 2100 m³/h
• Nominal Volume Flow: 1.1m³/min
• Rated Exhaust Pressure: 0.8MPa
• Ambient Temperature: -5~+45ºC
• Cooling Method: Air Cooling
• Exhuast Temperature: ≤Ambient temperature+15ºC
• Lubricating Oil Quantity: 3.3L
• Transmission Mode: Belt Type
• Gas Volume Adjustment Method: Add & Uninstall
• Oil Content in Gas: ≤3 ppm
• Noise: 72±2 dB(A)
• Safety Vavle Set Pressure: Rated working pressure x 1.1 MPa
• Outlet Pipe Diameter: G 1/2″
• Dimensions (L x W x H): 860mm x 730mm x 960mm
• Weight: 220kg

Warranty:

• 12 Month Warranty Covered by Chicago Air
