Description

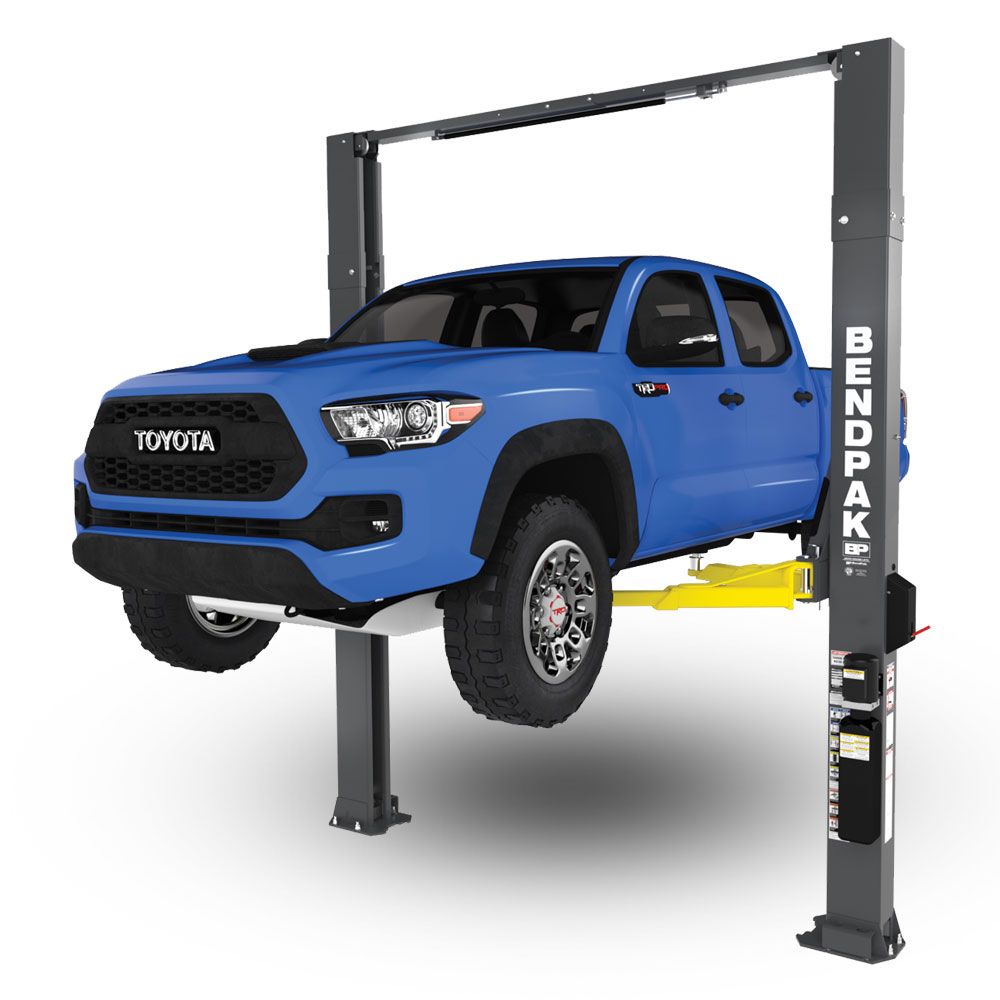

The robust 10AP-168 delivers advanced technology, premium-grade materials, a cutting-edge design, as well as a 10,000 lb. lifting capacity. Unlike the standard 10AP, this lift offers an enhanced overall height of 168”, giving taller techs the room they need to work effectively. This product is protected by patent in the United States (Patent No. US11820632B2), Canada, China, and other countries where corresponding patent protection has been sought.
Features:
- A Cutting-Edge Evolution in Automotive Lifting
- Elevate Your Expectations with the AP Series
- Unparalleled Safety with Automatic Arm Restraint
- The Future is Triple-Telescoping
- Low-Pro™ for Greater Versatility
- Safety Meets Innovation with the Lock System
- Durable powder coat finish
- Expandable top beam accommodates wide or narrow drive-thru configurations
- Double-telescoping screw pads offer increased versatility
- Padded overhead safety shutoff bar
- Exclusive Bi-Metric™ arm design for more versatile arm positioning
- Single-point safety release
- Drop-end arms provide a lower pad height
- Dual hydraulic direct-drive cylinders
- Oversized 53″ & 59″ tall carriages for superior strength and durability
- Electric / hydraulic HVLP power system
- Self-lubricating dura-glide UHMW polyethylene bearing system
- Safety locks in each column spaced every 3″
- Automatic arm restraints withstand over 2000-pounds of side force
- 3/8″(10mm) High-strength multi-strand galvanized steel equalizing cable
- Oversized cable sheave diameter reduces cable fatigue
- Four triple-telescoping arms
- ALI certified
Specifications:
- Lifting Capacity: 10,000 lbs. (4,536 kg)
- Rise: 1753 mm
- Rise + Pad: 1834.7 mm
- Min Height + Pad: 102 mm
- Time to Full Rise: 45 Seconds
- Height Overall: 4,267 mm
- Width Overall: 3,429 mm or 3,683 mm
- Outside Columns: 3,226 mm or 3,480 mm
- Inside Columns: 2,750 mm or 3,004 mm
- Drive-Thru Clearance: 2,337 mm or 2,591 mm
- Floor to overhead switch: 4,153 mm
- Front arm reach (MIN): 559 mm
- Front arm reach (MAX): 1,207 mm
- Rear arm reach (MIN): 749 mm
- Rear arm reach (MAX): 1,448 mm
- Max load per arm: 1,134 kg
- Noise: <70 dB
- Shipping Dimensions (L x W x H): 3,810mm x 610mm x 762mm
- Weight: 1840kg
Warranty:
- 1 Year Warranty Covered By BendPak
