Description

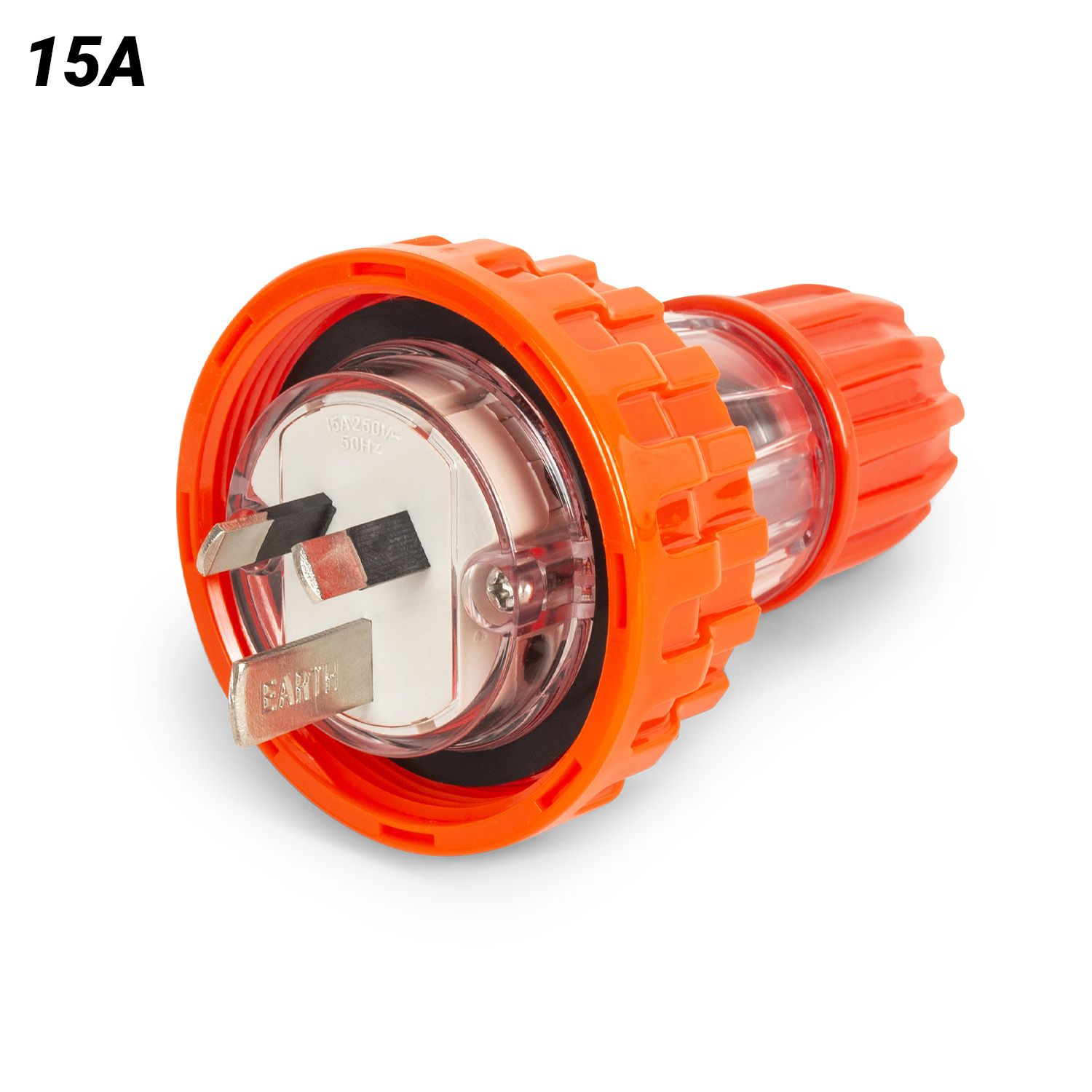

Built for demanding work environments, the Bayer Industrial Straight Flat Plug features a tough, IP66-rated polycarbonate body that provides exceptional impact resistance and long-lasting durability. Designed with the tradesperson in mind, it includes a transparent housing for quick visual inspections of internal connections and an ergonomic profile that is easy to grip and operate, even when wearing heavy work gloves.
Features:
- Heavy-duty IP66 rated plug
- Tough, impact resistant ploycarbonate body for long lasting durability
- Transparent housing allows for quick visual inspection of internal connections
- Easy to grip and operate even with gloved hands
- Corrosion-resistant stainless steel screws
- Compliant with Australian Standards: AS/NZS 3112 & AS/NZS 3100
- Terminal: Up to 4mm2 bootlaced (Maximum Flex Sheath Diameter 12.6mm)
Specifications:
- Voltage: 250V
- Frequency: 50Hz
- Max Load: 2500W
- Amperage: 15A
- Pin Number: 3 Flat Pins
- Rating: IP66
- Temperature Rating: -15°C – +40°C
- Body Material: Polycarbonate
- Cable Connection:
- 3 Core Circular Ordinary Duty Flexible Cord:
- Nominal Area of Conductor: 1.5mm2 or 2.5mm2
- Cord Diameter: Minimum 6.8mm2 to Maximum 10.6mm2
- 3 Core Circular Heavy Duty Flexible Cord:
- Nominal Area of Conductor: 1.5mm2
- Cord Diameter: Minimum 6.8mm2 to Maximum 10.6mm2
- 3 Core Circular Ordinary Duty Flexible Cord:
- AUS / NZ Safety Standards: 3112 Inc A1-2, 3100 Inc A1-3
- Dimensions (L x W x H): 113mm x 67mm x 67mm
- Weight: 0.12kg
Warranty:
- 12 Month Warranty Covered By Bayer
