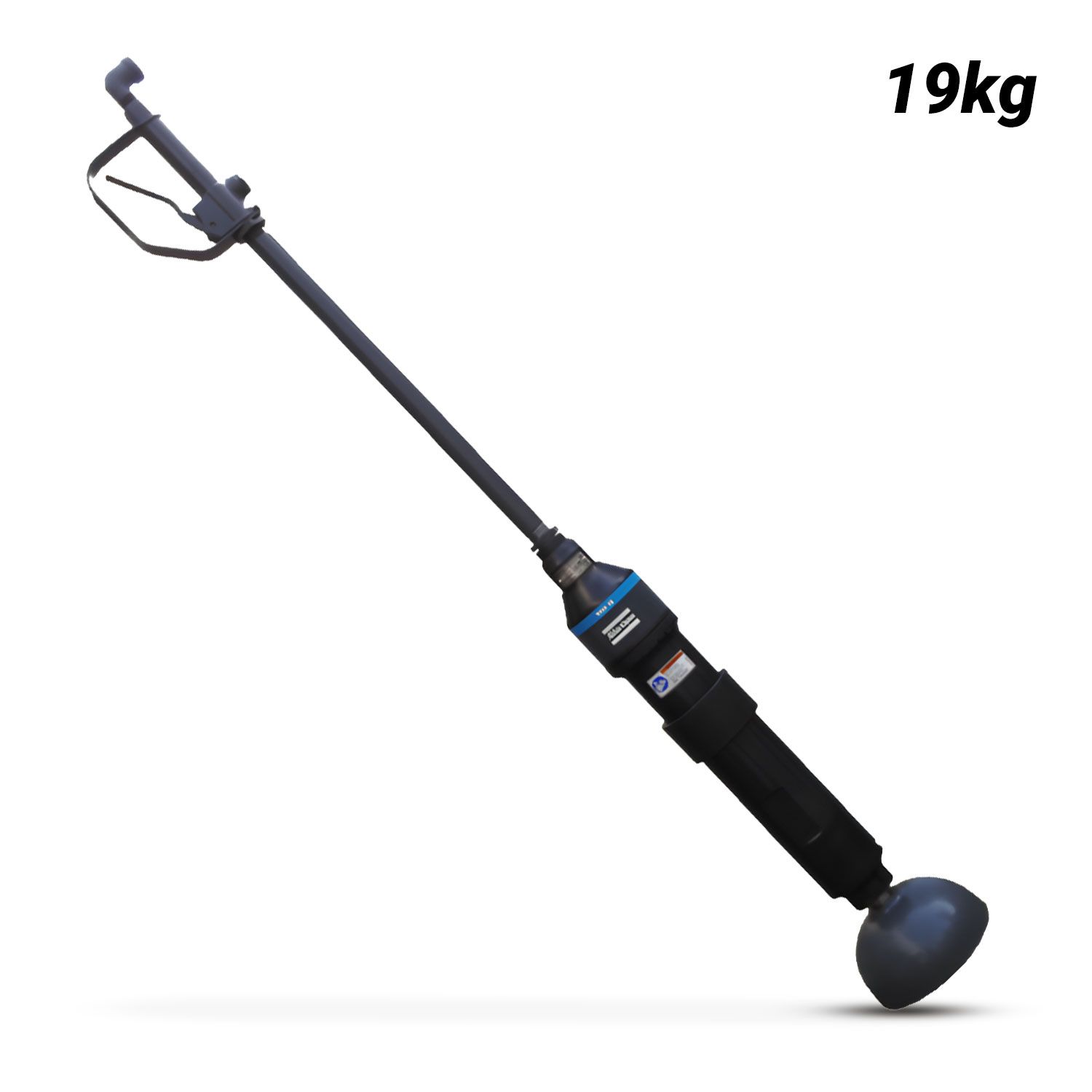

Atlas Copco TAM 19 PUN 19kg Pneumatic Soil Tamper / Rammer

Description

The Atlas Copco TAM 19 PUN is a powerful, heavy-duty pneumatic soil tamper designed for demanding compaction work around foundations, structural elements and confined trenches. Its slow, forceful impact action efficiently consolidates backfill, clay and finely crushed materials that can be difficult to compact with conventional plate compactors. Delivering up to 780 blows per minute through a large 158.8mm tamper butt, it provides concentrated impact force and productive surface coverage. A heat-treated steel cylinder, chrome-plated piston and integral automatic oiler support dependable performance and extended service life, while the long-reach body allows a single operator to work effectively in deep trenches and restricted areas.

Features:

• Heavy-Duty Compaction: Designed for demanding soil, clay and trench-backfill applications
• Powerful Impact Action: Delivers up to 780 blows per minute for effective material consolidation
• Large Tamper Butt: 158.8mm contact area provides productive coverage while concentrating impact force
• Heat-Treated Steel Cylinder: Provides excellent strength, durability and resistance to demanding jobsite conditions
• Chrome-Plated Piston: Reduces friction and wear for smooth, dependable operation
• Integral Automatic Oiler: Continuously lubricates internal components to support performance and service life
• Exhaust Deflector: Directs exhaust air and oil away from the operator
• Replaceable Aluminium Butt: Secured with a clamp screw for straightforward servicing and replacement
• Long-Reach Construction: 1,270mm length provides excellent access into trenches and around foundations
• Single-Operator Design: Provides powerful compaction performance in a portable handheld format

Specifications:

• Tool Type: Pneumatic Soil Tamper / Rammer
• Length: 1,270mm
• Body Diameter: 98.4mm
• Butt Size: 158.8mm
• Impact Frequency: 780bpm
• Air Consumption: 13L/s (27.5CFM)
• Recommended Air Pressure: 6.2 Bar (90psi)
• Hose Connection: 19mm (3/4″)
• Power Source: Compressed Air
• Lubrication: Integral Automatic Oiler
• Cylinder: Heat-Treated Steel
• Piston: Chrome-Plated Steel
• Sound Pressure Level: 94dB(A)
• Vibration Level: 44.8m/s² (ISO 20643)
• Weight: 19kg
