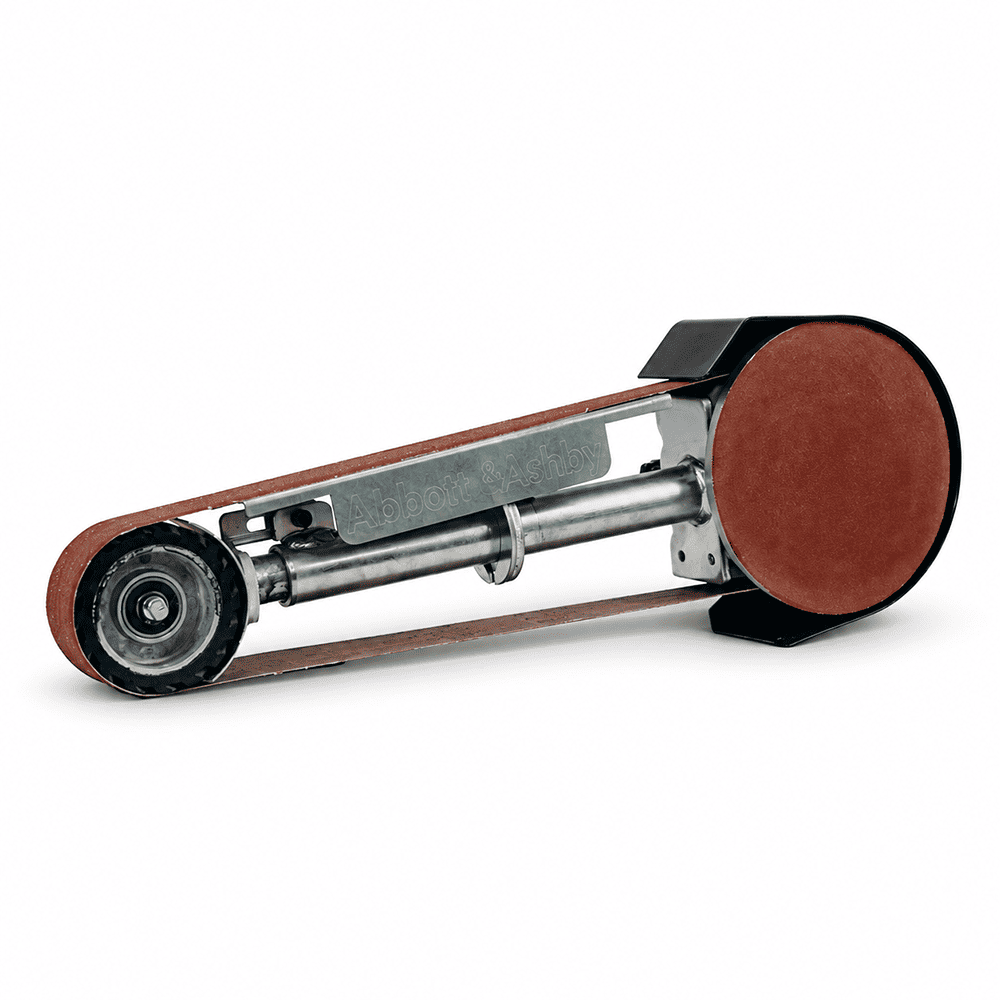

Abbott & Ashby AA482 1220mm x 50mm Linishing Attachment to Suit 6″-8″ Bench Grinders

Description

Featuring an extra-long 1220mm x 50mm belt for larger workpieces, the AA482 Linishing Attachment can be easily installed on the left- or right-hand side of most 150mm (6″) and 200mm (8″) bench grinders with a maximum shaft size of 16mm. Ideal for tool sharpening, edge sanding, smoothing welds, polishing and other finishing applications, it can be used on materials including wood, plastic, metal and ceramics with a quick change of belts.

Features:

• Extra-long 1220mm x 50mm belt accommodates larger workpieces
• Suitable for left- or right-hand installation on most 150mm (6″) and 200mm (8″) bench grinders
• Working angle can be quickly adjusted in 6° increments without disassembly
• Top platen can be used for flat surface grinding or moved out of the way for convenient free strapping
• Belt tracking adjustment knob with locking mechanism
• Self-locking push-in, push-out arm enables fast belt changes

Specifications:

• Belt Size: 1220mm x 50mm (48″ x 2″)
• Belt Grit: 240 Grit
• Disc Diameter: 178mm (7″)
• Disc Grit: 120 Grit
• Contact Wheel Diameter: 89mm (3-1/2″)
• Maximum Compatible Shaft Size: 16mm

Warranty:

• 3 Years Limited Warranty Covered By Abbott & Ashby Australia
